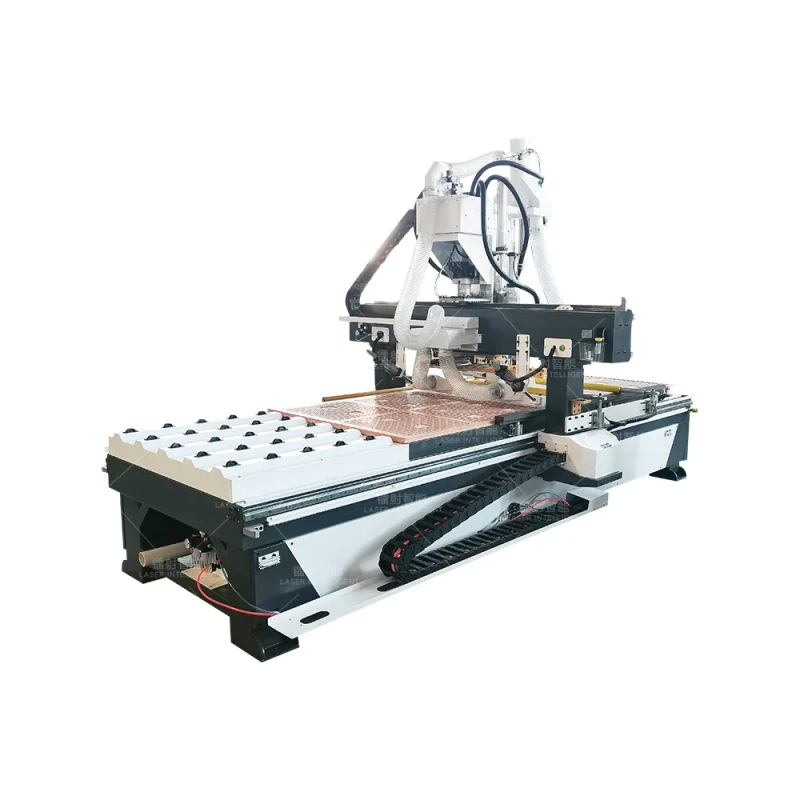

Factory Direct Sales of CNC Cutting Machines with Tool changing Spindles and Rotary Saws 1330 ATC CNC Router

Factory Direct Sales of CNC Cutting Machines with Tool changing Spindles and Rotary Saws 1330 ATC CNC Router
  • Factory Direct Sales of CNC Cutting Machines with Tool changing Spindles and Rotary Saws 1330 ATC CNC Router

    • Factory Direct Sales of CNC Cutting Machines with Tool changing Spindles and Rotary Saws 1330 ATC CNC Router

    Request a Quote
    number of axes3voltage380 V, 220V
    machine typeCNC RouterNo. of SpindlesATC
    key selling pointsMultifunctionalAccessory TypeDust collection
    core componentsBearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearboxcnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    weight (kg)1800range of spindle speed(r.p.m)3000 - 24000
    positioning accuracy (mm)0.02travel (x axis)(mm)1300
    travel (y axis)(mm)3000repeatability (x/y/z) (mm)0.02
    Spindle Motor Power (kw)9dimension(l*w*h)3700*2150*2100mm(145.67*84.65*82.68in)
    Product nameATC CNC Router MachineApplicationKitchen Cabinet Doors Furnitures Making
    KeywordsATC Woodworking Cnc RouterControl systemTaiwan LNC Control System
    Spindle9kw ATC SpindleAfter-sales Service Provided24 Hours Online Service
    FunctionWood Acylic Plywood MDF EngravingWorking area1300*3000mm
    MotorServo MotorTransmissionXY-axis:rack Z-axis:ball Screw
