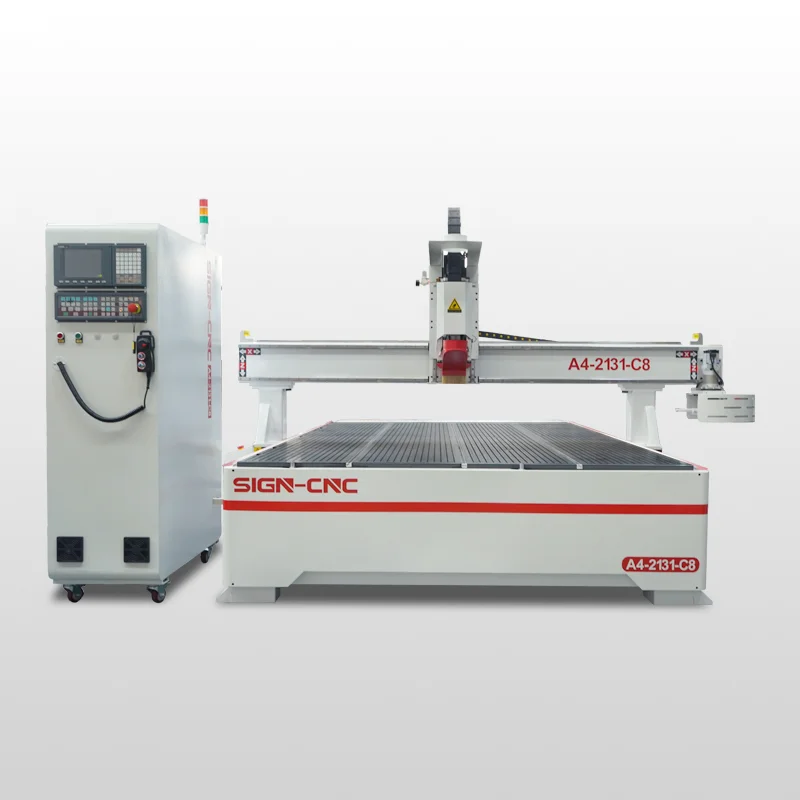

Factory Direct Large CNC Router 2100x3100mm 9KW ATC 8 Tool Disc Magazine Syntec 60WE Japan Reducer for Wood Furniture Making

Factory Direct Large CNC Router 2100x3100mm 9KW ATC 8 Tool Disc Magazine Syntec 60WE Japan Reducer for Wood Furniture Making
  • Factory Direct Large CNC Router 2100x3100mm 9KW ATC 8 Tool Disc Magazine Syntec 60WE Japan Reducer for Wood Furniture Making

    • Factory Direct Large CNC Router 2100x3100mm 9KW ATC 8 Tool Disc Magazine Syntec 60WE Japan Reducer for Wood Furniture Making

    Request a Quote
    number of axes3voltage380 V
    machine typeCNC RouterNo. of SpindlesATC
    key selling pointsMultifunctionalAccessory TypeDust collection, Scanner
    core componentsBearing, Motor, Pump, Gearcnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    weight (kg)1200positioning accuracy (mm)0.01
    travel (x axis)(mm)2100travel (y axis)(mm)3100
    repeatability (x/y/z) (mm)0.05Spindle Motor Power (kw)9KW(12.07hp)
    dimension(l*w*h)2100*3100*300mm(82.68*122.05*11.81in)Table SurfaceVacuum table with T-slot and 7.5KW vacuum pump
    Spindle Power9.0KW ATC air-cooled ISO30-ER32 spindleSpindle Speed0-24000RPM
    Tool MagazineDisc type 8 tools changer magazineInverterDelta high frequency 11KW inverter
    Drive MotorsSyntec 1000W AC servo motor and driver (Z-axis motor with brake)ReducerJapan Shimpo planetary reducer
    Control SystemSyntec 60WE bus control systemElectrical DevicesFrench Schneider electrical devices
    SoftwareArtcam with post processor
