Professional manufacturer of woodworking machinery

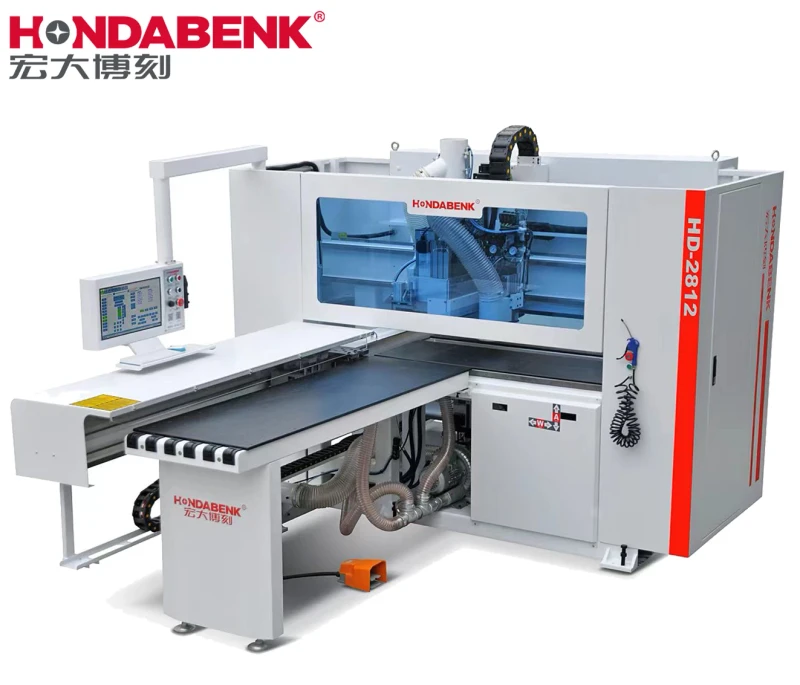

Experienced Six sided Boring Machine Six sided Drilling Machine CNC Six sided Drilling and Milling Center With High Quality
Experienced Six sided Boring Machine Six sided Drilling Machine CNC Six sided Drilling and Milling Center With High Quality
| Working Table Size(mm) | 4800x1200x140mm(188.98x47.24x5.51in) | number of axes | 6 |
| voltage | 380V 50Hz 3P | machine type | Six-sided drilling and milling center |
| No. of Spindles | Double | key selling points | Competitive Price |
| cnc or not | CNC | video outgoing-inspection | Provided |
| machinery test report | Provided | Power (kW) | 22 |
| weight (kg) | 3000 | range of spindle speed(r.p.m) | 18000 - 24000 rpm |
| positioning accuracy (mm) | 0.02 mm(0in) | travel (x axis)(mm) | 4800 mm(188.98in) |
| travel (y axis)(mm) | 1200 mm(47.24in) | repeatability (x/y/z) (mm) | 0.01 mm(0in) |
| Spindle Motor Power (kw) | 3.5Kw(4.69hp) | dimension(l*w*h) | 2900*2270*2200mm + 1700*2250*1600mm |
| Working area | 4800x1200x140mm | Working Voltage | 380V 50Hz |
| Spindle | 2*3.5Kw air cooling spindle | Model | HD-2812 |
| Inverter | EDT 11kw | Control system | Syntec |
| Table Surface | Vacuum Working Table | Application | Furniture Door Cabinet Industry |
| Product name | ATC CNC Router Machine |
