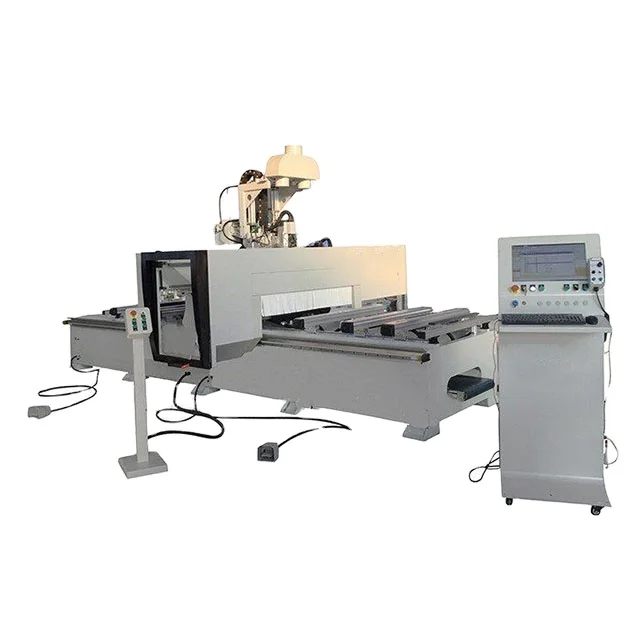

Europe Design 5 Five Sides Drilling Center PTP Cnc Router with Aggregate Vertical Horizontal Head for Wood Working Furniture
Europe Design 5 Five Sides Drilling Center PTP Cnc Router with Aggregate Vertical Horizontal Head for Wood Working Furniture
| Working Table Size(mm) | 1600*3200 | number of axes | 3 |
| voltage | 380/220/415 | machine type | CNC Router |
| No. of Spindles | Single | key selling points | Multifunctional |
| core components | Motor, Pump, Engine | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| weight (kg) | 5000 | range of spindle speed(r.p.m) | 1 - 24000 rpm |
| positioning accuracy (mm) | 0.01 mm(0in) | travel (x axis)(mm) | 1600 mm(62.99in) |
| travel (y axis)(mm) | 3200 mm(125.98in) | repeatability (x/y/z) (mm) | 0.02 mm(0in) |
| Spindle Motor Power (kw) | 9kw(12.07hp) | dimension(l*w*h) | 4.5*2.8*2.4M(14.76*9.19*7.87ft) |
| spindle | italy 12kw/9kw | Driver | japan yaskawa driver 1300w |
| control | Italy TPA | max travelling speed | 80m/min |
| boring tools | 9V6H1S/ 7V4H/ 12V8H2S | ATC | 12/8/10 |
| Table | Aluminum bars x10pcs with movable Vacuum pads | Guide rail | Taiwan HIWIN Square Linear Rail |
| Power(W) | 20kw | Weight | 6000 |
