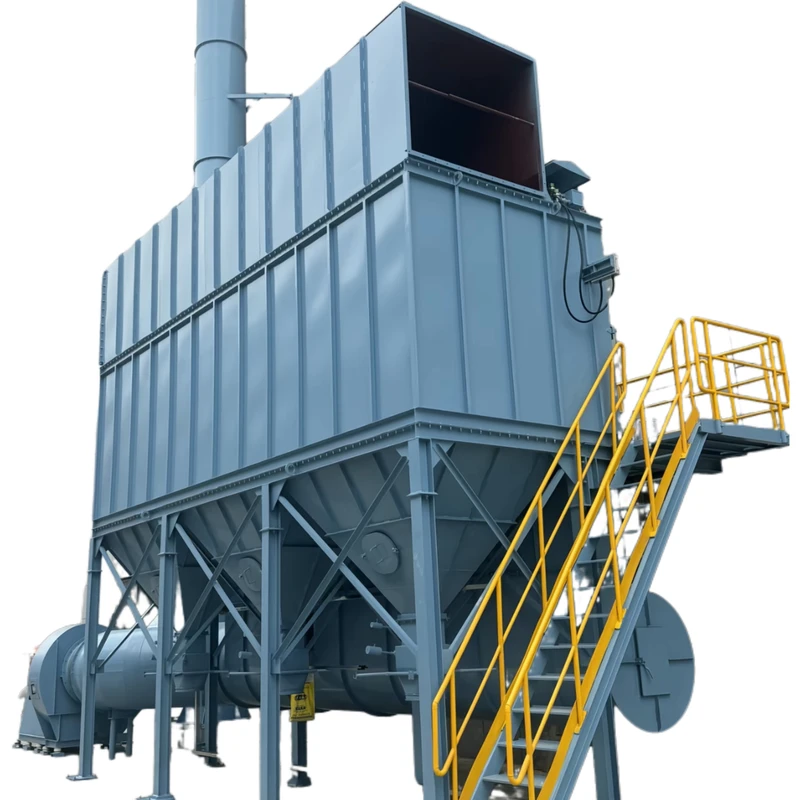

Energy Saving Dust Collector for Continuous Dust Control in Baghouse Dust Collector Manufacturing
Energy Saving Dust Collector for Continuous Dust Control in Baghouse Dust Collector Manufacturing
| Maximum Air Flow | 2400 CFM | Filter Type | Filter Bag |
| Voltage | 380 V, 220-240V, customed, 400v, 415v | Phase | Single Phase, Three Phase |
| Material | 304 Stainless Steel, Mild Steel/Ss304/Ss316, Stainless Steel, Carbon Steel | Main Inlet Diameter | 2 in, 3 in, 4 in, 5 in, 8 in, 6in, customed |
| Lower Collector Capacity | 2.1 cu ft, 66 gal, customed | Tank Size | customed |
| Number Of Adaptor Inlets | 1, 2, 3 | Upper Filter Type | Filter Bag, customed |
| Horsepower | 3 HP, 5 HP, 18 HP, customed | Installation | Side Loading, Top Loading, customed |
| Maximum Sound Rating | 65 dBA | Timer Setting | 9-16 hr |
| condition | New | dimension(l*w*h) | customed |
| minimum particle size | 5mg/Nm³, customed | weight | 2500 |
| Air leakage rate | 100% sealed | Filtration Speed | 0.3-1.5m/s |
| Filtration Area | Customized | Number of Cloth Bags | 24-1000 |
| Operating Temperature | 0-280°,High-temperature customizable | Filter Bag Specifications | DN133,DN160,customed |
| Bag Length | 1m,1.5m,2m,2.5m,3m,4m,5m,6m,customed | Ash removal method | Pulse-jet cleaning |
| Machinery Test Report | Supply | Ash-cleaning pressure | 0.4-0.6mpa |
