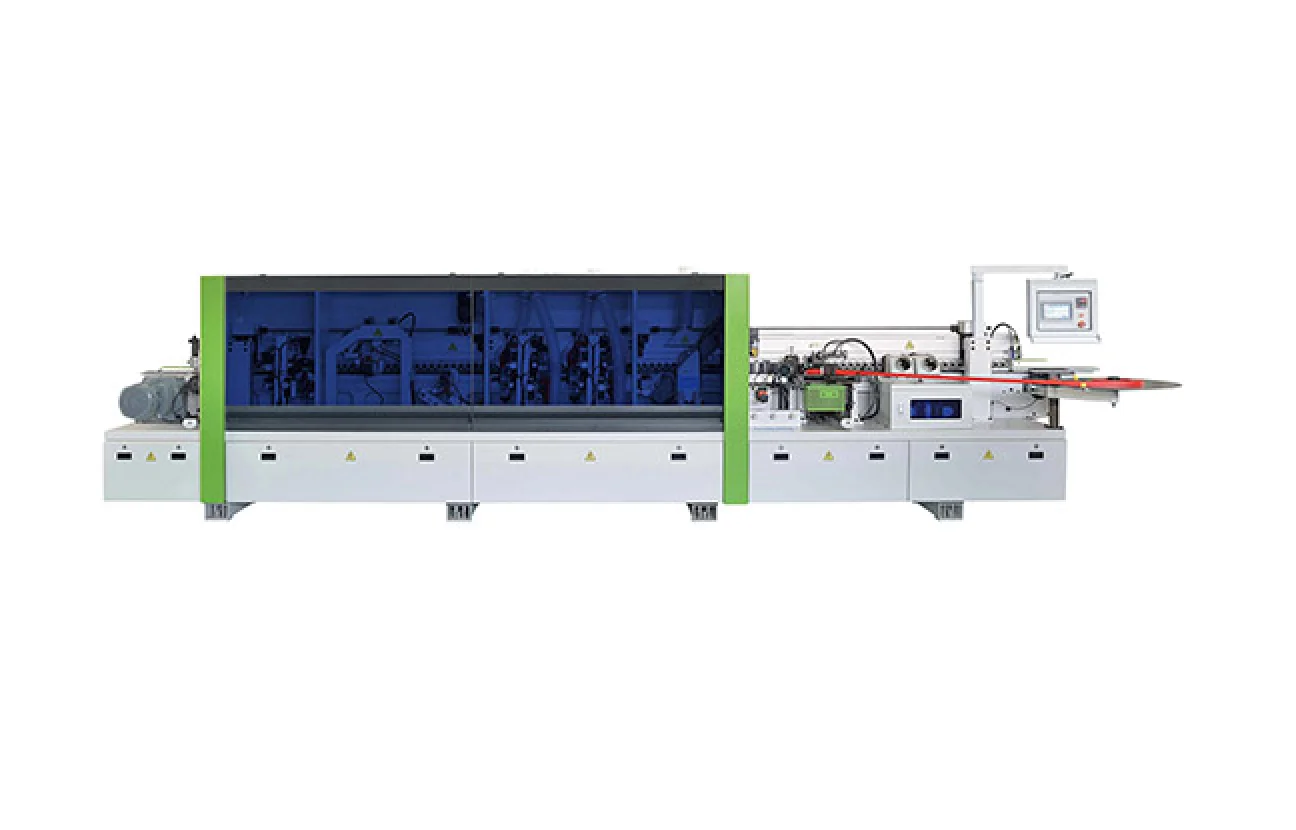

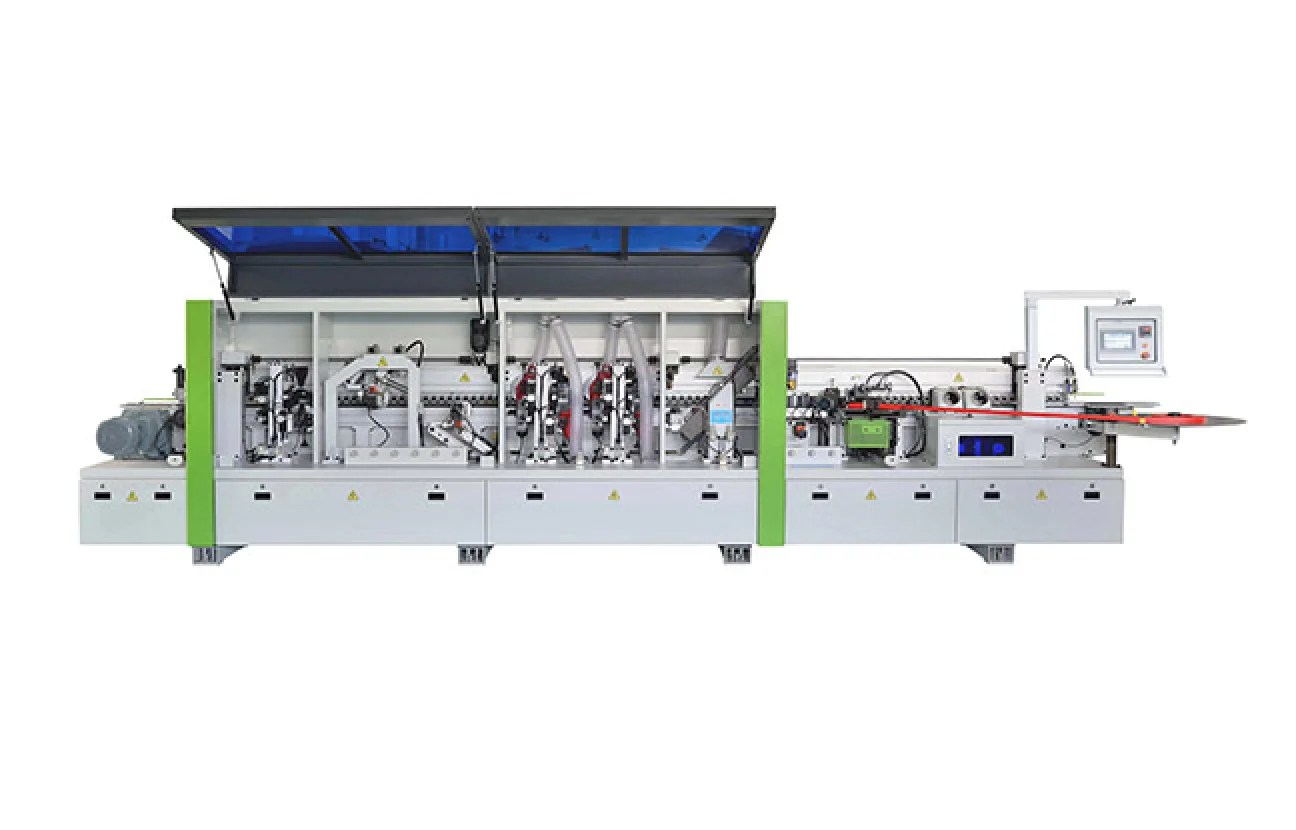

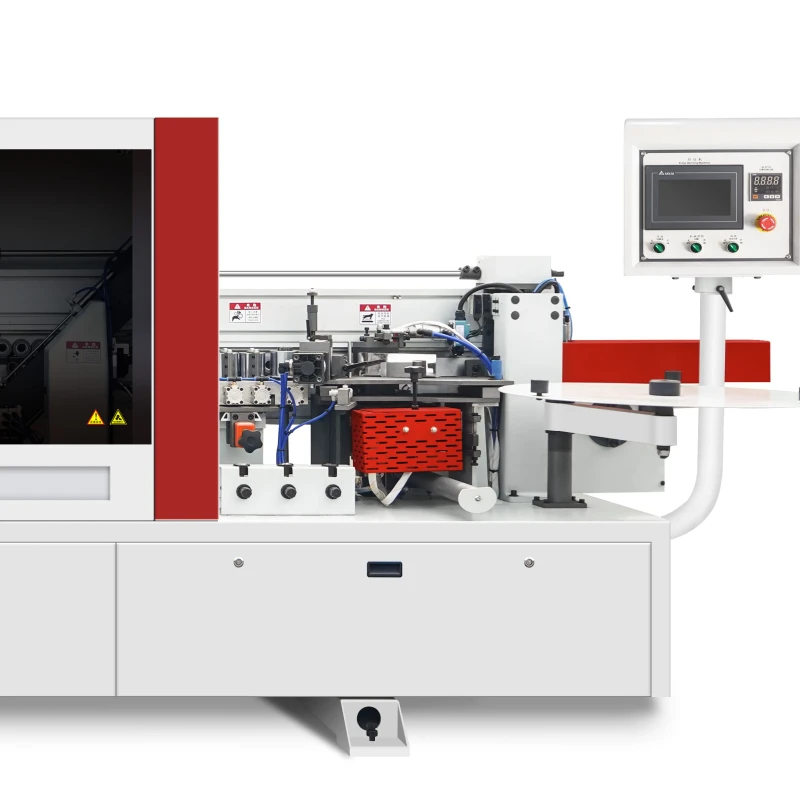

Edge Banding Machine
<div class="texts"> <p>● Edge banding machine ZD450A has 8 functions</p><p>● Edge bander power is 16.5kw</p><p>● Edge banding tape thickness is 0.4-3 mm</p><p>● Edge bander working thickness is 10-60 mm</p><p>● Customizable, OEM & ODM</p></div>
Edge Banding Machine

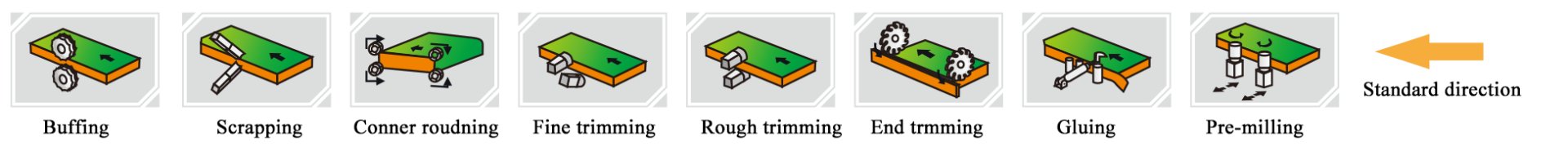

● Edge banding machine ZD450A has 8 functions
● Edge bander power is 16.5kw
● Edge banding tape thickness is 0.4-3 mm
● Edge bander working thickness is 10-60 mm
● Customizable, OEM & ODM
Working Pressure | 0.6~0.8 Mpa |
Total Power | 16.5 Kw |
Feeding Speed | 12-23 m/min |
Electric Lifting | 0.37 Kw |
Working Thickness | 10-60 mm |
Working Length | ≧150 mm |
Working Width | ≧60 mm |
Edge Thickness | 0.4-3 mm |
Overall Size | 6560*900*1590 mm |

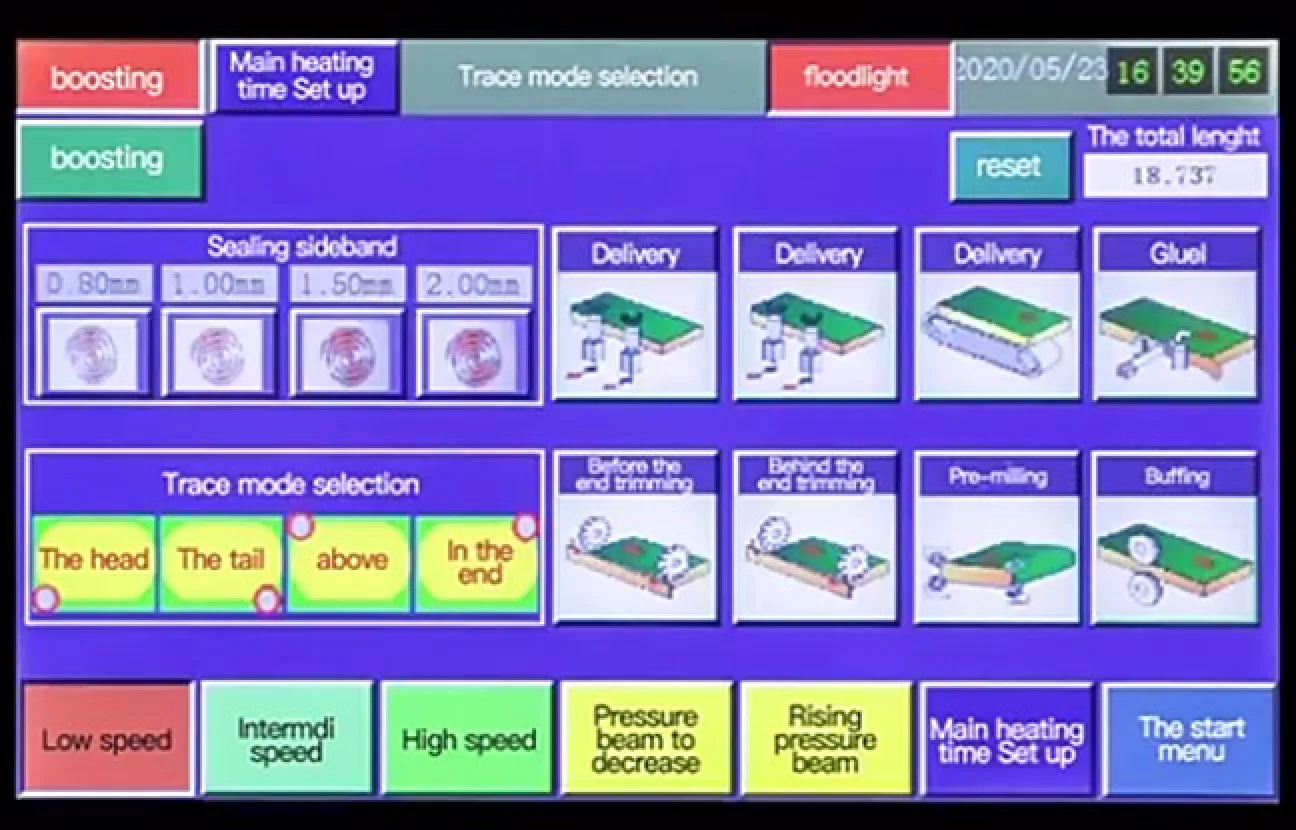

TAIWAN Shihlin brand PLC & touch screen control panel. 4 sizes edge type thickness options on the control panel. (This function is optional)
The encoder replaces the limit switch, which is more accurate and stable. There is a gap in the limit switch, the spring will be broken after some time, the encoder solves this problem very well.

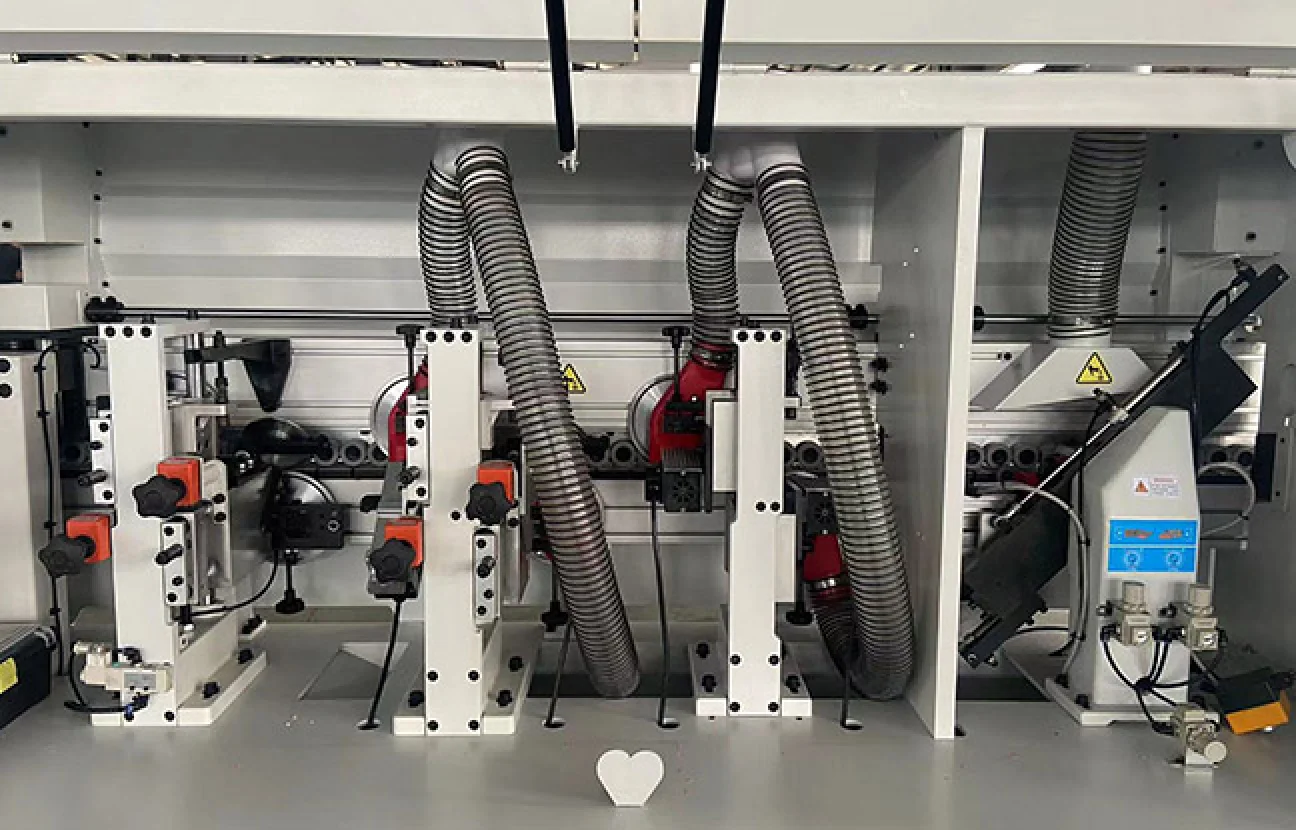

Pre-milling Unit
Nonstick material glue pot, easy to clean. Board preheating part, better gluing effect.

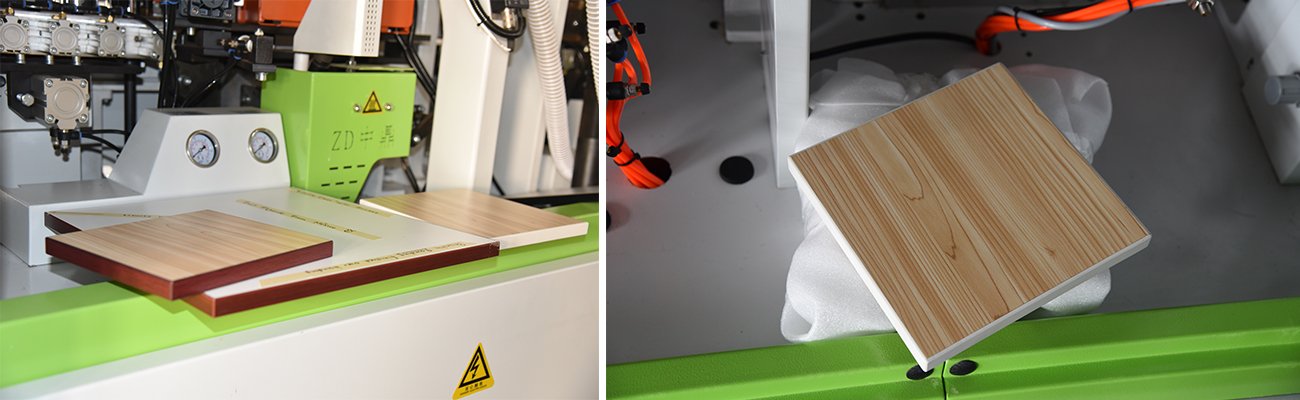

Auxiliary pinch roller for narrow boards. Stable edge banding even for 4cm width panel. Strong end cutting unit makes sure the well process.

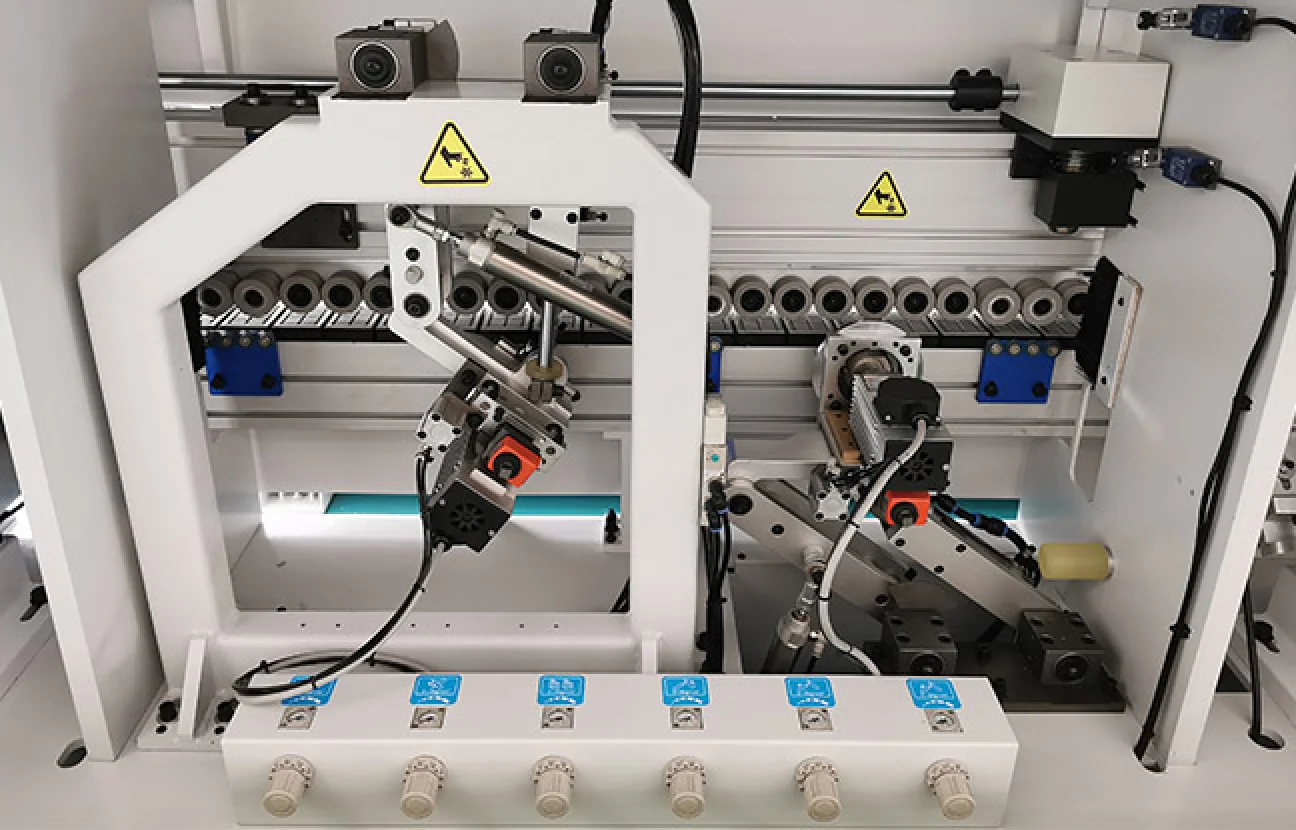

Corner Rounding mechanism with two high precision tracking motor to make sure high tracking speed and high trimming speed.
