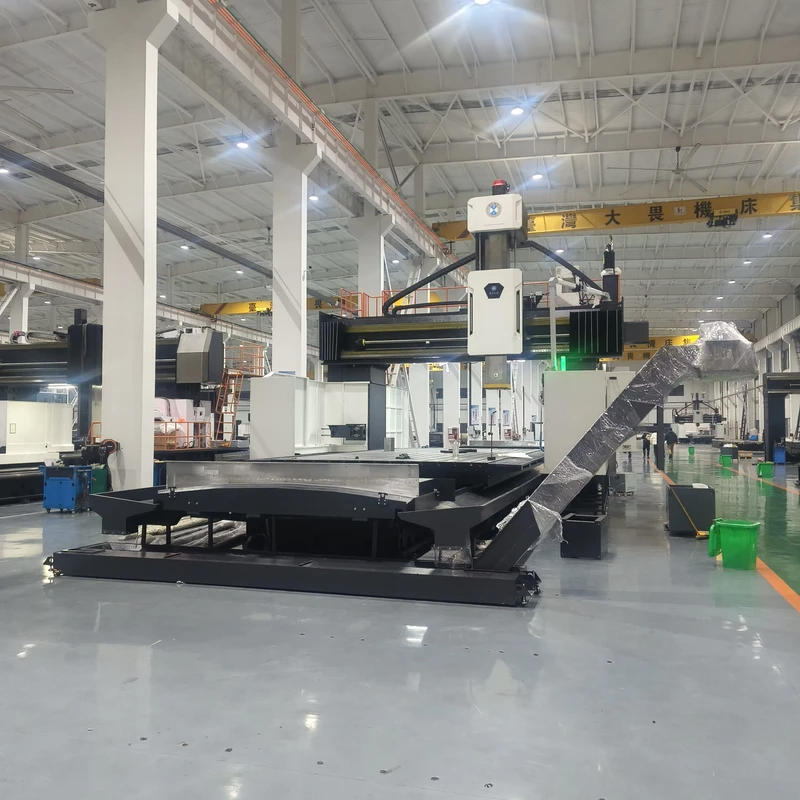

DVF6052 CNC Double Column Machining Center with 5 Axis Milling Head
DVF6052 CNC Double Column Machining Center with 5 Axis Milling Head
| type | VERTICAL | table travel (x) (mm) | 6000 |
| table travel (y) (mm) | 5200 | table travel (z) (mm) | 1500 |
| repeatability (x/y/z) (mm) | ±0.015 | positioning accuracy | ±0.01 |
| spindle taper | BT50 | no. of spindles | 1 |
| tool magazine capacity | 24 | cnc control system | FANUC |
| machining capacity | Heavy Duty | voltage | 380 V |
| table size | 6000x3000 | machinery test report | Provided |
| video outgoing-inspection | Provided | min. time of tool change(s) | 3 |
| key selling points | Multifunctional, Automatic, High-Accuracy | weight (t) | 50 |
| max. table load(kg) | 15 | dimension(l*w*h) | 16600/9700/7900 |
| range of spindle speed | 3000 - 3500 | rapid feed speed | 10 - 30 |
