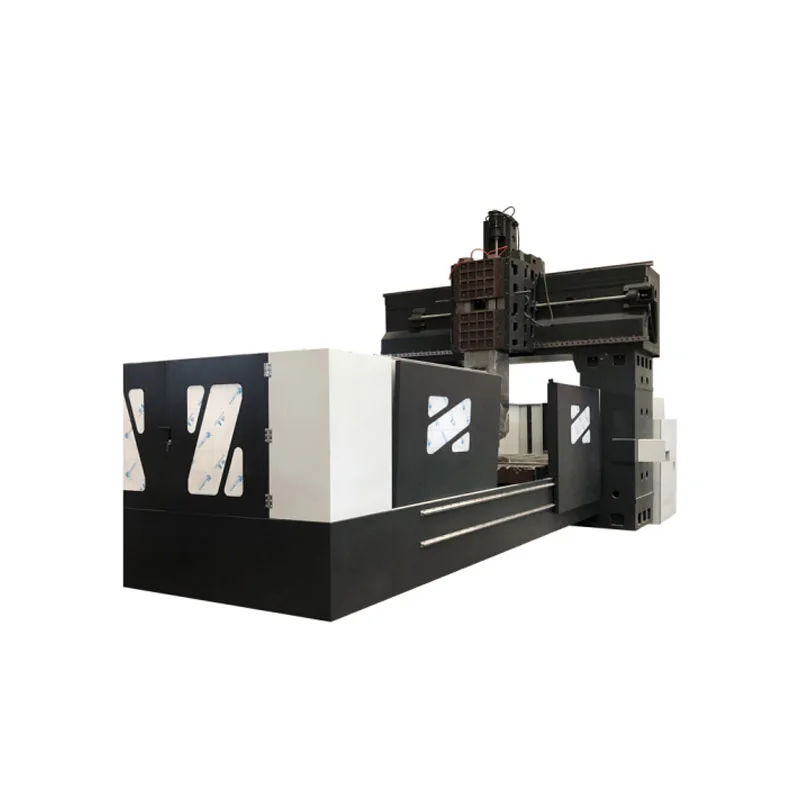

Drilling Milling and Boring Multifunctional Boring and Milling Machine Single Provided GMC2116 CNC Gantry Milling Machine
Drilling Milling and Boring Multifunctional Boring and Milling Machine Single Provided GMC2116 CNC Gantry Milling Machine
| type | Gantry | number of axes | 3 |
| voltage | customer'requirement | table travel (x) (mm) | 1600 |
| table travel (y) (mm) | 2000 | table travel (z) (mm) | 700 |
| positioning accuracy | +-0.01/300 | repeatability (x/y/z) (mm) | +-0.01 |
| spindle taper | BT50 | cnc control system | Siemens |
| machining capacity | Medium Duty | no. of spindles | Single |
| machinery test report | Provided | video outgoing-inspection | Provided |
| key selling points | Long Service Life | max. table load(kg) | 4000 |
| range of spindle speed | 10 - 6000 | dimension(l*w*h) | 750x300x370 |
| weight | 15000 | Worktable load | 4000kg |
| Worktable size | 1600*2000 | X.Y.Z Axis Travel | 1600x2000x700(Optional)mm |
| Table size | 1600*2000 | Dimensions LxWxH | 5500x2600x3700mm |
| Machine weight | 15T | Spindle model brand | BT50 |
| Certification | ISO9001 | Warranty of core components | 2 years |
| Marketing Type | Hot Product |
