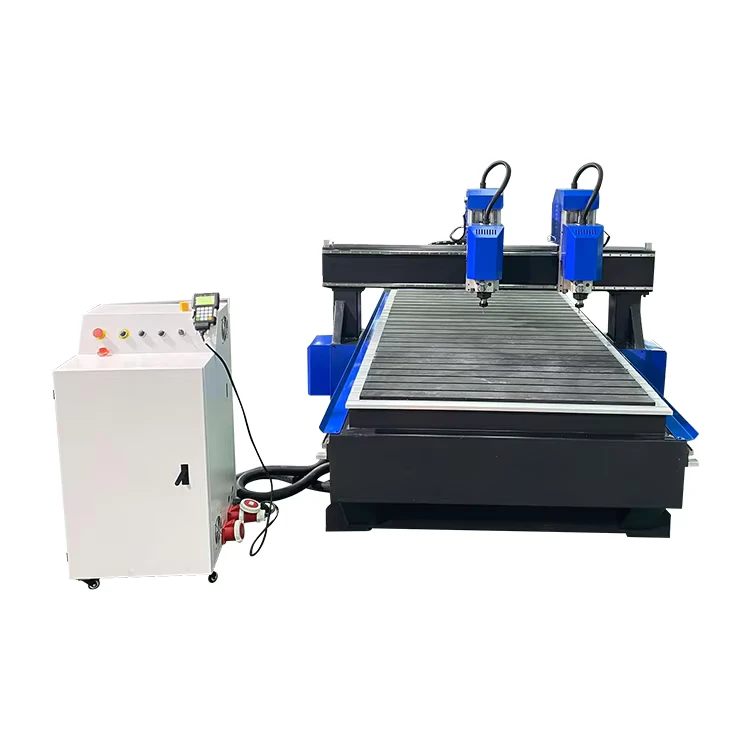

Double Heads Deep Engraving 3D CNC Machine CNC Router Machine Router CNC with 4 Axis Carving Machinery
Double Heads Deep Engraving 3D CNC Machine CNC Router Machine Router CNC with 4 Axis Carving Machinery
| Working Table Size(mm) | 1300*2500mm(51.18*98.43in) | number of axes | Double |
| voltage | 380V/50HZ | machine type | CNC Router |
| No. of Spindles | Double | key selling points | High precision |
| core components | Bearing, Motor, Pump, Gear, Gearbox, Other | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| Power (kW) | 13 | weight (kg) | 1500 |
| range of spindle speed(r.p.m) | 1 - 24000 rpm | positioning accuracy (mm) | 0.01 mm(0in) |
| travel (x axis)(mm) | 1300 mm(51.18in) | travel (y axis)(mm) | 2500 mm(98.43in) |
| repeatability (x/y/z) (mm) | 0.01 mm(0in) | Spindle Motor Power (kw) | 6.0kw(8.05hp) |
| dimension(l*w*h) | 1800*5000*200mm(70.87*196.85*7.87in) | Product name | Cnc Router Machine |
| Application | Wood Working | Control system | RichAuto A15 DSP control system |
| Working Voltage | AC380V/50Hz | Motor | Stepper motor AIGT driver |
| Rail guide | China rail 20mm | X,Y Working Area | 1300*2500mm |
| Work Holding | By suction or clamp | Dust-collect Function | yes |
| Keywords | Two Spindle Cnc Router Machine |
