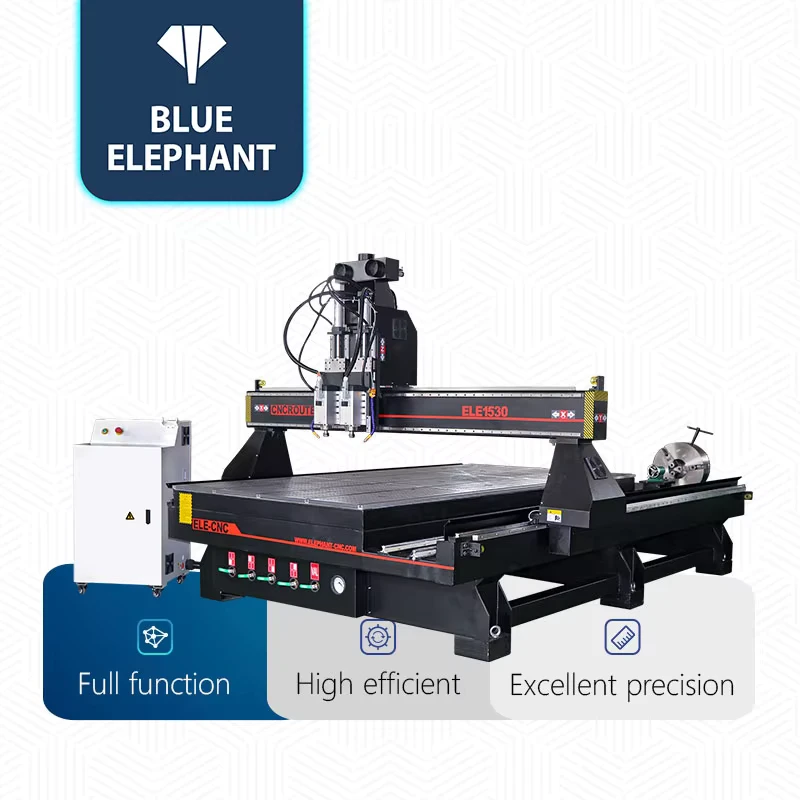

Double Head 4th Axis Rotary Axis CNC Router Wood Carving Machine with Pneumatic System

Double Head 4th Axis Rotary Axis CNC Router Wood Carving Machine with Pneumatic System
  • Double Head 4th Axis Rotary Axis CNC Router Wood Carving Machine with Pneumatic System

    • Double Head 4th Axis Rotary Axis CNC Router Wood Carving Machine with Pneumatic System

    Request a Quote
    Working Table Size(mm)1500×3000number of axes4
    voltage220V 50Hz 1Pmachine typeCNC Router
    No. of SpindlesMultikey selling pointsEasy To Operate
    core componentsMotorcnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    Power (kW)3.7weight (kg)1000
    range of spindle speed(r.p.m)0 - 24000 rpmpositioning accuracy (mm)0.03
    travel (x axis)(mm)1500travel (y axis)(mm)3000
    repeatability (x/y/z) (mm)0.03Spindle Motor Power (kw)3
    dimension(l*w*h)1300*2500*200mm(51.18*98.43*7.87in)Product nameCNC Wood Working Machine
    ApplicationKitchen Cabinet Doors Furnitures MakingWorking area1500*3000*200mm, etc.
    Spindle3KW air cooling spindle, ER25, 2 setsControl systemPM95A-4A
    Traveling speed80m/minWorking speed0-25m/min
    Re-positioning accuracy±0.03mmSystem resolution±0.0025mm
    Working accuracy±0.03mm
