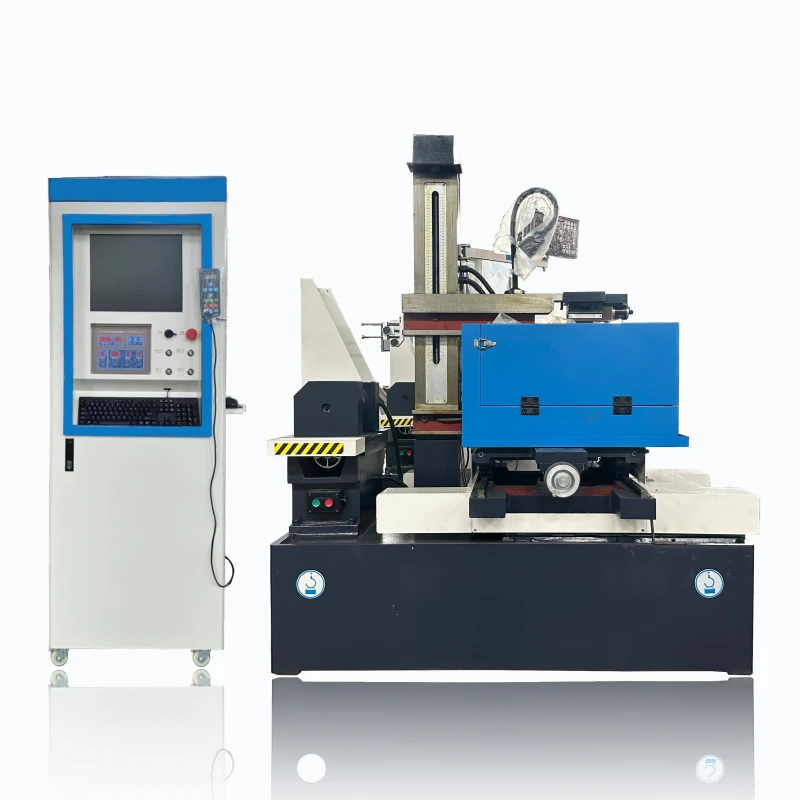

DK7745 Fast Single cut CNC Wire Cutting Machine Tool

DK7745 Fast Single cut CNC Wire Cutting Machine Tool
  • DK7745 Fast Single cut CNC Wire Cutting Machine Tool

    • DK7745 Fast Single cut CNC Wire Cutting Machine Tool

    Request a Quote
    machine typeWire EDMvoltage110 V, 380 V, 220 V, 22/380
    cnc or notCNCkey selling pointsAutomatic
    machinery test reportProvidedcore componentsPLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear
    video outgoing-inspectionProvidedpower (kw)1.5
    weight (kg)1800dimension(l*w*h)1600*1200*1600
    Manufacturing or TradingSource manufacturerWorkbench Travel450*550 mm
    X & Y AXISLinear Guideway / Ball ScrewMax. cutting thickness400 mm
    Max. loading on table450KGMax. cutting taper±6°/80 mm
    Precision≤0.02 mmMachine Surface Roughness≤1.2 μm
    Max. cutting speed≥120 mm²/minMotorStepper Motor / Servo Motor
