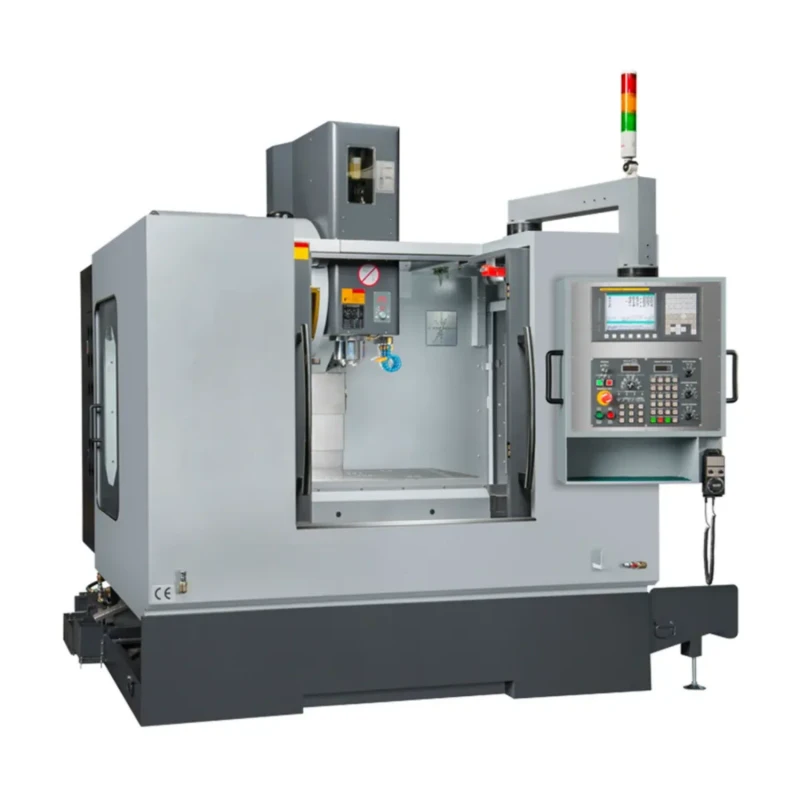

Desktop CNC Vertical Machine Center Milling Machine for Metal

Desktop CNC Vertical Machine Center Milling Machine for Metal
  • Desktop CNC Vertical Machine Center Milling Machine for Metal

    • Desktop CNC Vertical Machine Center Milling Machine for Metal

    Request a Quote
    typeVERTICALnumber of axes3
    table travel (x) (mm)600 mm(23.62in)table travel (y) (mm)420 mm(16.54in)
    table travel (z) (mm)500 mm(19.69in)repeatability (x/y/z) (mm)±0.003
    positioning accuracy±0.005/300spindle taperBT40-120,BT40-150 Optional
    no. of spindlesSingletool magazine capacity24
    cnc control systemFANUCvoltage380V/50HZ
    table size800*420machinery test reportProvided
    video outgoing-inspectionProvidedmin. time of tool change(s)1
    key selling pointsHigh Productivityweight (t)4.5 T(4.96short tons )
    max. table load(kg)500 kg(1102.31lb)dimension(l*w*h)2650*2000*2235mm(104.33*78.74*87.99in)
    range of spindle speed1 - 8000 r.p.mspindle motor power5.5/7
    CNC or NotCNCAfter-sales Service ProvidedEngineers available to service machinery overseas
    Controlling ModeCNC Control SystemProcessingMetal
    PrecisionHigh PrecisionColorCustomized
    Weight (T)4.5Number of Axes3
    No. of Spindles:Single
