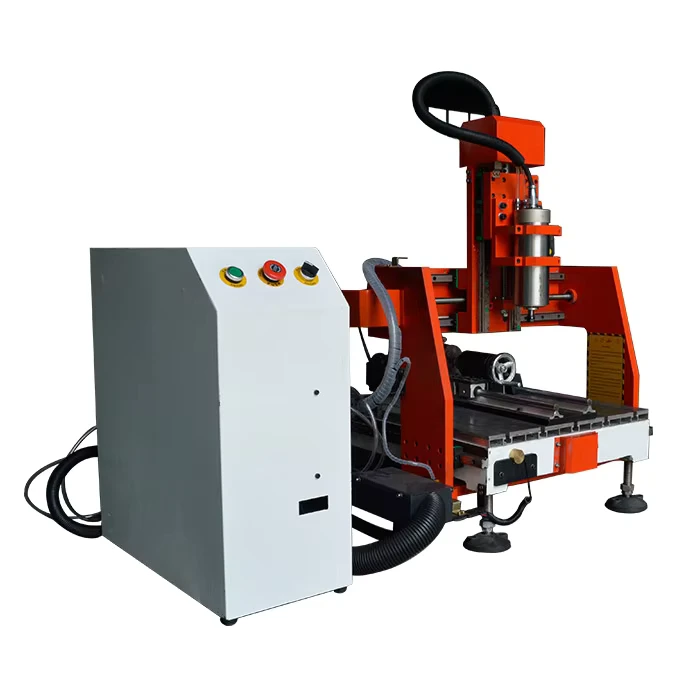

Desktop 6090 3D Engraving Small CNC Machine with Rotary

Desktop 6090 3D Engraving Small CNC Machine with Rotary
  • Desktop 6090 3D Engraving Small CNC Machine with Rotary

    • Desktop 6090 3D Engraving Small CNC Machine with Rotary

    Request a Quote
    number of axes2voltage220V/380V
    machine typeCNC RouterNo. of SpindlesSingle
    key selling pointsEasy To Operatecore componentsBearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)800
    positioning accuracy (mm)0.02travel (x axis)(mm)600
    travel (y axis)(mm)900repeatability (x/y/z) (mm)0.02
    Spindle Motor Power (kw)1.5dimension(l*w*h)600*900*150mm(23.62*35.43*5.91in)
    After-sales Service ProvidedEngineers available to service machinery overseasItemCnc Router Machine 3d
    Working table size600*900mmControl systemDSP Controller
    Motor and driverStepper motor and driverInverterDelta inverter
    Guide railTaiwan HIWIN Square Linear RailZ axis transmissionTaiwan TBI Ball Screw
    Transmission in X,Y axisHelical Rack and opinionPower(W)1.5KW
