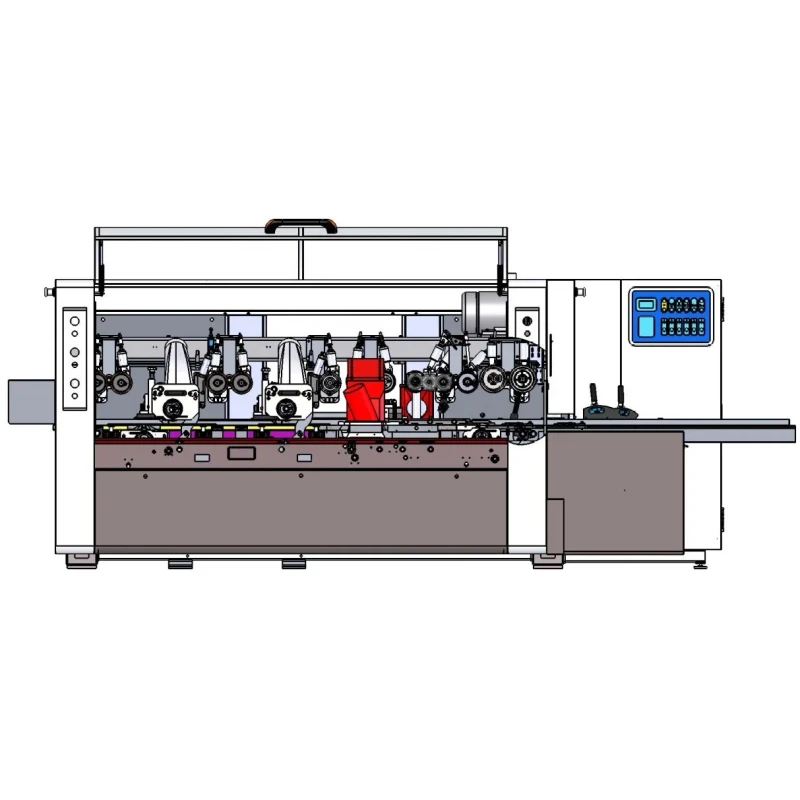

Customized CE Certification Woodworking Four Side Planer Moulder

Customized CE Certification Woodworking Four Side Planer Moulder
  • Customized CE Certification Woodworking Four Side Planer Moulder

    • Customized CE Certification Woodworking Four Side Planer Moulder

    Request a Quote
    typeFour Side Mouldermax.planing width(mm)210
    voltage380V 50Hz 3Phasescore componentsPLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
    sliding table equippedNomachinery test reportProvided
    video outgoing-inspectionProvidedkey selling pointsEasy To Operate
    max.planing depth(mm)160 mm mmweight (kg)3500 KG(7716.18lb)
    dimension(l*w*h)3961*1462*1776mm(155.94*57.56*69.92in)Weight3150kg
    Type4 side spindle moulderMax working width160 / 180 / 210 / 230 /330mm
    Working thickness8-140mmLength of working table1800mm
    Feeding speed7-28 m/minSpindle diameter40mm
    Spindle speed6000r/minAir pressure0.6MPa
    The total power52.75kW
