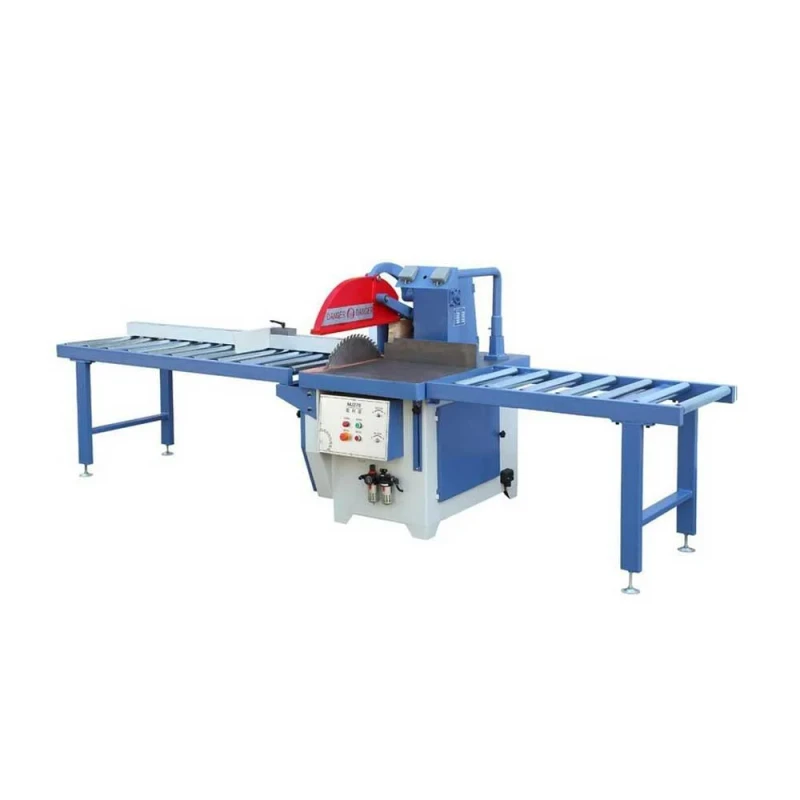

Cross Cut Pneumatic Saw Machines for Woodworking

Cross Cut Pneumatic Saw Machines for Woodworking
  • Cross Cut Pneumatic Saw Machines for Woodworking

    • Cross Cut Pneumatic Saw Machines for Woodworking

    Request a Quote
    TypeFrame SawCutting Capacity4 in, 3 in, 2 in
    voltage380v 50hz 3phase or as your requestStyleHorizontal
    Bevel Angle Range0°-45° left, 0°-45° rightuseWoodworking
    core componentsMotormachinery test reportProvided
    Key Selling PointsHigh-Accuracyvideo outgoing-inspectionProvided
    weight (kg)550power (kw)7.5
    dimension(l*w*h)4250x1150x1300mm(167.32x45.28x51.18in)Max Cutting width520*40mm
    Max Cutting thickness210*200mmSpindle speed1850r/min
    Spindle diameter25.4mmSaw blade diameter610mm
    Cylinder stroke250mmWorking air pressure0.6Mpa
    Total power motor7.5kwNet weight(kg)550kg
