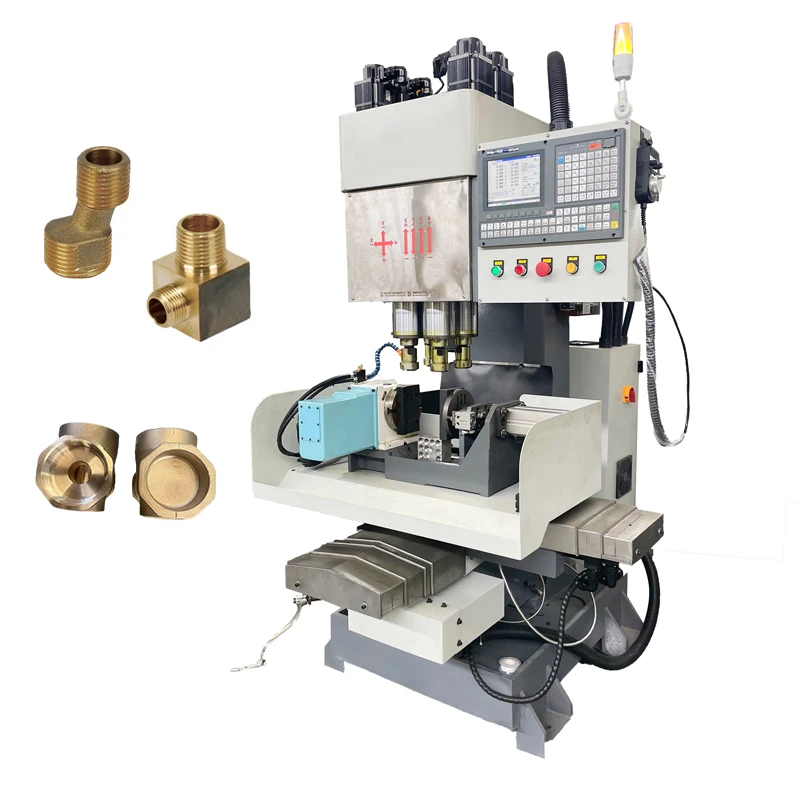

Copper Metal Bench Drill Press Machine Threads Tapping Function Automatic CNC Drilling and Milling Machine 4 Axis

Copper Metal Bench Drill Press Machine Threads Tapping Function Automatic CNC Drilling and Milling Machine 4 Axis
  • Copper Metal Bench Drill Press Machine Threads Tapping Function Automatic CNC Drilling and Milling Machine 4 Axis

    • Copper Metal Bench Drill Press Machine Threads Tapping Function Automatic CNC Drilling and Milling Machine 4 Axis

    Request a Quote
    max. drilling dia. (mm)50typeTapping Drilling Machine
    voltage380V 50HZcnc or notCNC
    machinery test reportProvidedcore componentsBearing, Pump, Gear, Motor, Gearbox, PLC, Pressure Vessel, Engine, Other
    video outgoing-inspectionProvidedkey selling pointsTapping and Drilling at the same time
    range of spindle speed(r.p.m)10 - 1000 r.p.mpower (kw)5.5kw(7.38hp)
    weight (kg)1300 KG(2866.01lb)drilling speed10-3000
    dimension(l*w*h)1400x1200x1950mm(55.12x47.24x76.77in)Product nameFour Spindles Tapping and Drilling Machine for Brass Zinc Aluminum
    TypeCombined multi-station and multi-spindle special machine toolsAfter-sales Service ProvidedEngineers,Online support,Video Technical Support
    Machine functionCNC, Tapping, DrillingApplication fieldsAuto parts, pump valves, machinery parts, plumbing and sanitary ware
    Workpiece materialBrass,Aluminum,Zinc,Iron,Stainless Steel,Gray cast iron,Ductile ironMax. drilling diameter50mm
    Max. tapping diameter50mmSpindle formsER40
    Tapping DirectionVertical /360 Degree/HorizontalConditionNew
    Showroom LocationTurkey, Thailand, AlgeriaWarranty of core components1 Year
    Applicable IndustriesManufacturing Plant, Auto parts,pumps and valves,plumbing and sanitary ware,hardware fittingsMarketing Type2/3/4 axis Tapping drilling machine
