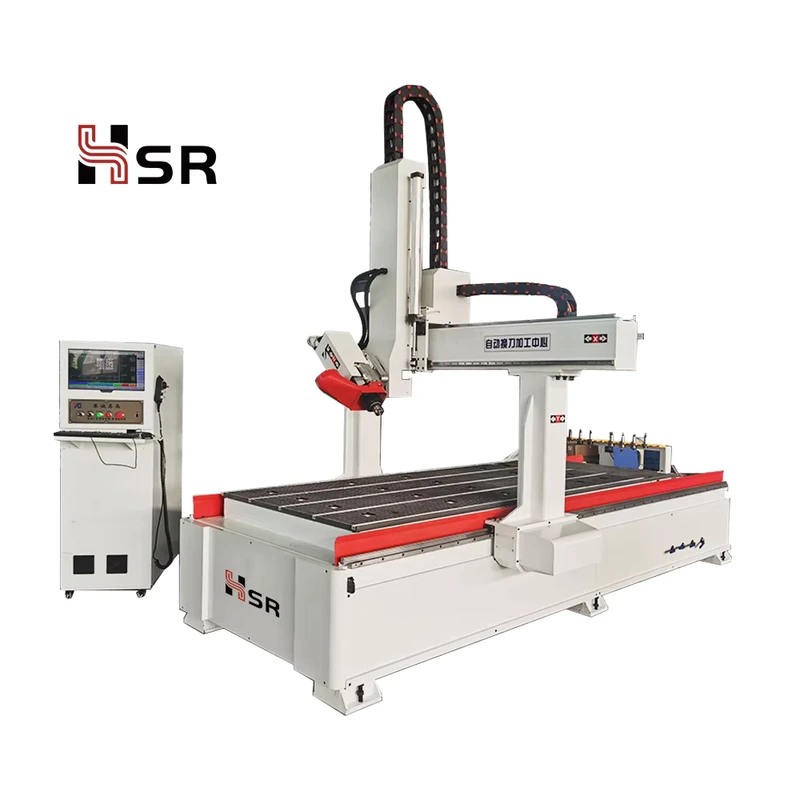

Computer Controlled Multi Function Wood CNC Router Rotary 4 Axis 8 Heads Wood CNC Router for Carving Wood
Computer Controlled Multi Function Wood CNC Router Rotary 4 Axis 8 Heads Wood CNC Router for Carving Wood
| Working Table Size(mm) | 1300×2500 | number of axes | 4 |
| voltage | AC380/3PH/50HZ | machine type | CNC Router |
| No. of Spindles | ATC | key selling points | Eco-Friendly |
| core components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| Power (kW) | 26 | weight (kg) | 2500 |
| range of spindle speed(r.p.m) | 6000 - 24000 rpm | positioning accuracy (mm) | 0.03 mm(0in) |
| travel (x axis)(mm) | 1300 mm(51.18in) | travel (y axis)(mm) | 2500 mm(98.43in) |
| repeatability (x/y/z) (mm) | 0.02 mm(0in) | Spindle Motor Power (kw) | 9 |
| dimension(l*w*h) | 3600*2200*2500mm(141.73*86.61*98.43in) | Product name | CNC Wood Working Machine |
| Application | Furniture Industry | Keywords | Cnc Wood Router Engraver |
| After-sales Service Provided | 24 Hours Online Service | Spindle | 9kw Air Cooling Spindle |
| Control system | Taiwan Syntec Controller | Transmission | XY-axis:rack Z-axis:ball Screw |
| Motor | Servo Motor | Inverter | 11kw Fuling Inverter |
| Software | Ucancam / ArtCam/TYPE3/UG |
