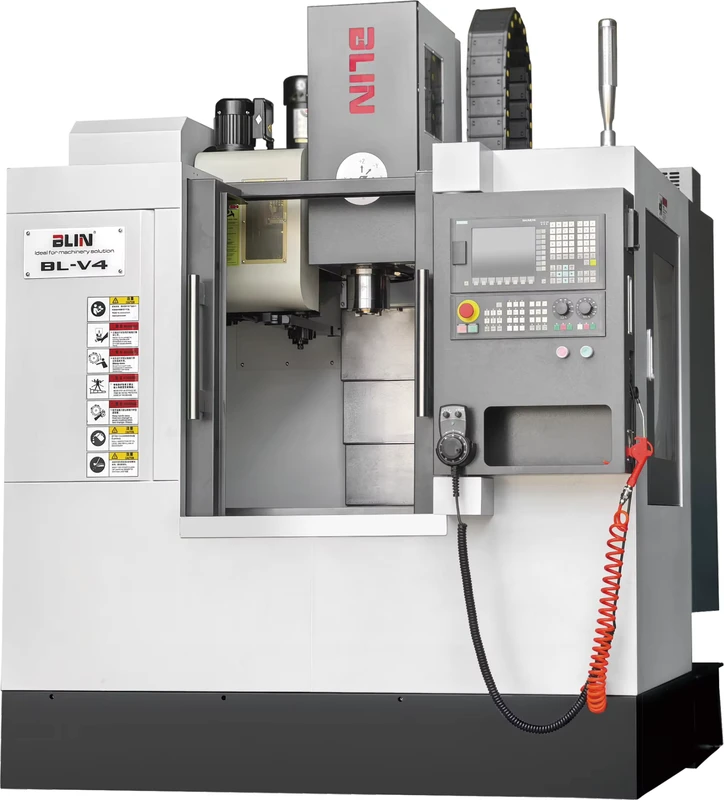

Compact Vertical 3 Axis BT40 CNC Milling Machine Metal Desktop Lathe High Accuracy CNC Automatic Lathe
Compact Vertical 3 Axis BT40 CNC Milling Machine Metal Desktop Lathe High Accuracy CNC Automatic Lathe
| type | VERTICAL | number of axes | 3 |
| voltage | As Customer's Requirement | table travel (x) (mm) | 450 |
| table travel (y) (mm) | 300 | table travel (z) (mm) | 450 |
| positioning accuracy | ±0.005 | repeatability (x/y/z) (mm) | ±0.003 |
| spindle taper | BT40 | cnc control system | Siemens |
| machining capacity | Medium Duty | no. of spindles | Single |
| key selling points | High-Accuracy, Multifunctional, Automatic | max. table load(kg) | 0 |
| range of spindle speed | 8000 - 30000 | dimension(l*w*h) | 1800*1800*2100 |
| weight | 2400 | Distance From Spindle Nose to Worktable | 120-570mm |
| Distance From Spindel Center to Column | 375mm | Spindle Speed | Belt-drive: 8000/10000; (Direct-drive: 12000/15000/24000/30000)* |
| Spindle Motor | 5.5(SIEMENS,GSK); 5.5/7.5(SYNTEC); 3.7/5.5(FANUC) | X,Y,Z axes ball screw O.D./pitch | 32/16mm |
| Tool magazine | Umbrella type 12T;Opt:(Arm type 16T) | Tool changing time | 1.8s 7s |
