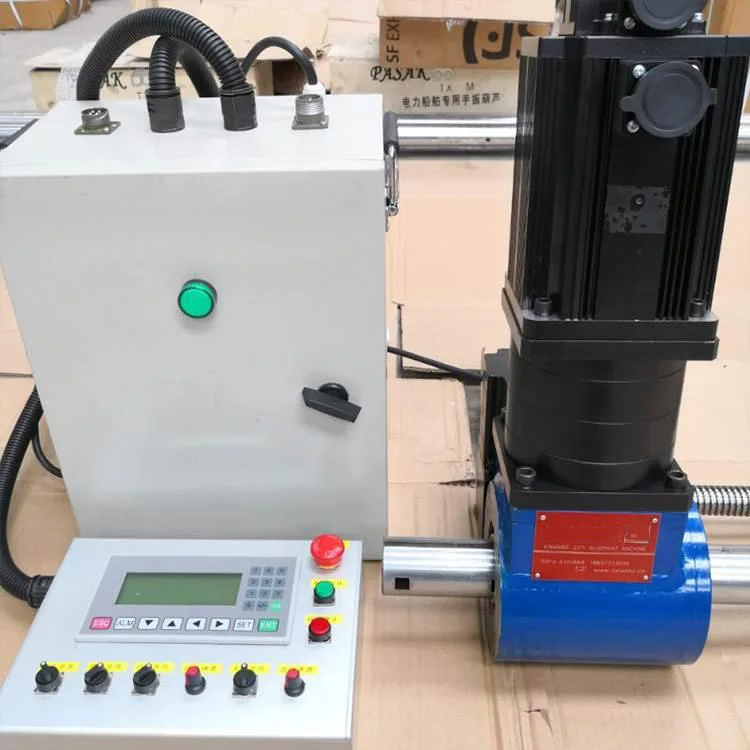

Compact and Portable CNC Boring Welding Machine All in One with Digital Control System for Engineering Site
Compact and Portable CNC Boring Welding Machine All in One with Digital Control System for Engineering Site
| type | CNC Boring Welding Machine All-in-One | cnc or not | CNC |
| table size (mm) | other | spindle motor power(kw) | 2.8 |
| number of axes | other | voltage | 220 V |
| no. of spindles | 1 | Automatic Grade | Automatic |
| machinery test report | Provided | video outgoing-inspection | Provided |
| core components | Motor | key selling points | boring and welding |
| table travel (x) (mm) | 0 | table travel (y) (mm) | 0 |
| table travel (z) (mm) | 0 | range of spindle speed(r.p.m) | 220 |
| weight (t) | 0.1 | max. table load(kg) | 1300 |
| travel (w-axis) (mm) | 1300 | positioning accuracy (x axis) mm | 1 |
| positioning accuracy (y axis) mm | 1 | positioning accuracy (z axis) mm | 1 |
| production capacity | other | dimension(l*w*h) | 1350*50*60 |
| Boring diameter | 40-350mm | Boring bar specification | 40mm * 1500mm |
| Welding diamete | 45-370mm | Wire diameter | 1.0 |
| Spindle speed | 0.1-220r/min | usage | Can be used with gas shielded welders of any interface |
| function | common boring, fixed length boring, spiral welding, swing welding, etc | Ambient temperature | -10℃~+40℃ |
| Storage temperature | -25℃~+55℃ | Relative humidity | 20℃≤85%,40℃≤50% |
