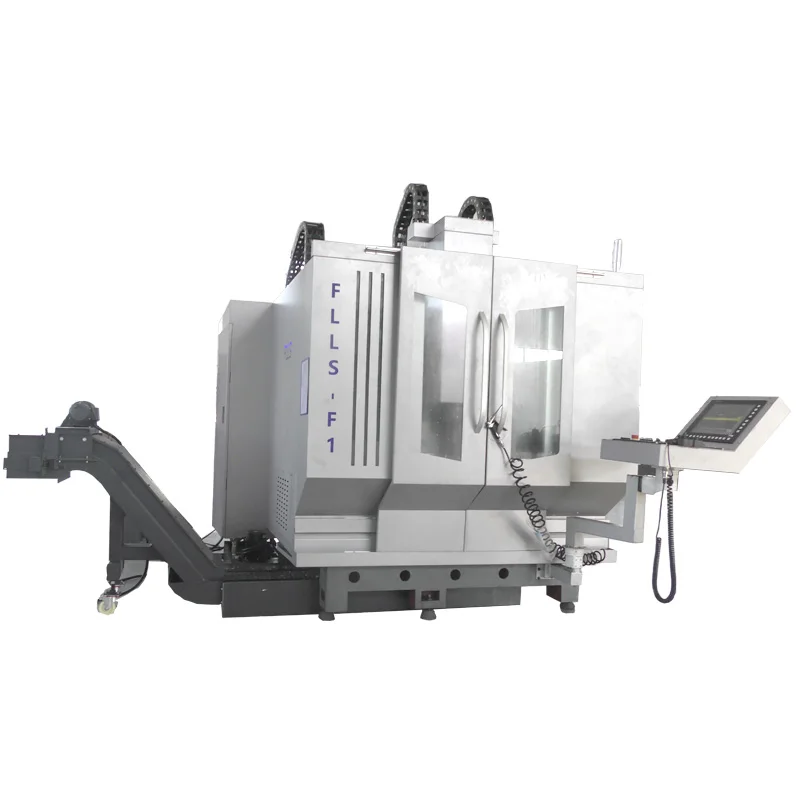

Compact 5 Axis CNC Router for Carbon Fiber Composite Material Processing

Compact 5 Axis CNC Router for Carbon Fiber Composite Material Processing
  • Compact 5 Axis CNC Router for Carbon Fiber Composite Material Processing

    • Compact 5 Axis CNC Router for Carbon Fiber Composite Material Processing

    Request a Quote
    typeVERTICALtable travel (x) (mm)400
    table travel (y) (mm)400table travel (z) (mm)350
    repeatability (x/y/z) (mm)±0.003/300mmpositioning accuracy±0.005/300mm
    spindle taperBT40no. of spindles5
    tool magazine capacity20, 24, 32, 40, Othercnc control systemFANUC
    voltage220V/380V/420table size250
    machinery test reportProvidedvideo outgoing-inspectionProvided
    min. time of tool change(s)2key selling pointsHigh-Accuracy
    weight (t)5max. table load(kg)200
    dimension(l*w*h)2500x2600x2600mm(98.43x102.36x102.36in)range of spindle speed0 - 12000 r.p.m
    Product name5 Axis CNC Milling MachineApplicationMetal Machining Center
    After-sales Service ProvidedEngineersControl systemSIEMENS GSK FANUC (optional)
    PrecisionHigh Precision Machining CenterRepeat Positioning Accuracy±0.003/300mm
    CertificationCE ISOCustomizablesupport
    GuidewaysTaiwan Hiwin Linear GuidewaysModel5 axis simultaneous
