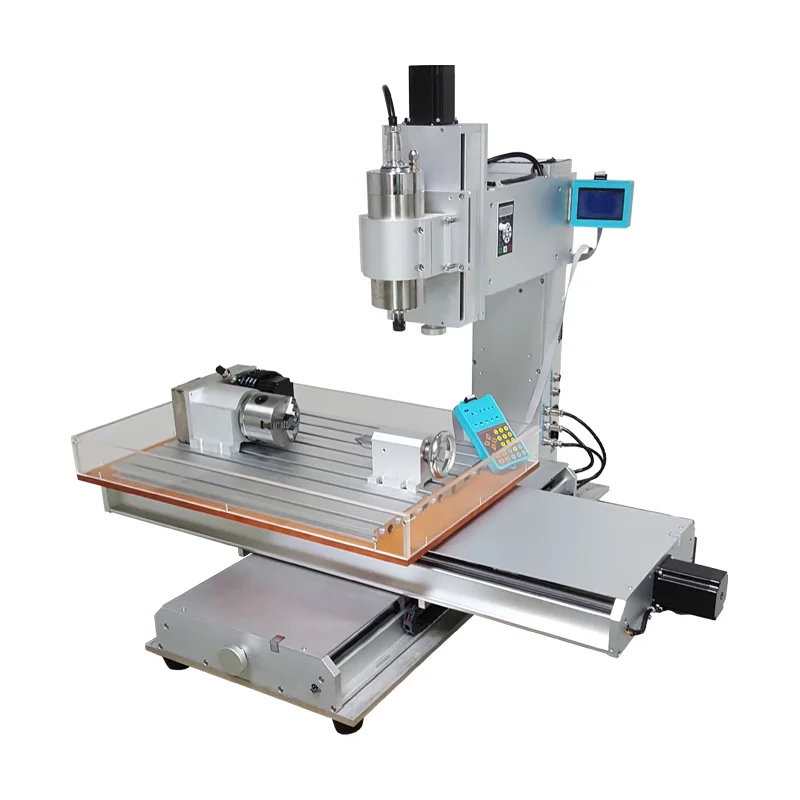

Column Type CNC 6040 3 4 5axis Wood Router Vertical Engraving Machine with 1.5kw Water Cooled Frequency Spindle CNC Machine
Column Type CNC 6040 3 4 5axis Wood Router Vertical Engraving Machine with 1.5kw Water Cooled Frequency Spindle CNC Machine
| Working Table Size(mm) | 600x400 mm(23.62x15.75in) | number of axes | 3/4/5 |
| voltage | 220V / 110V | machine type | CNC Router |
| No. of Spindles | Other | key selling points | Easy To Operate |
| core components | Motor, Other | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| Power (kW) | 1.5 | weight (kg) | 125 |
| range of spindle speed(r.p.m) | 0 - 4000 rpm | positioning accuracy (mm) | 0.02 mm(0in) |
| travel (x axis)(mm) | 600 mm(23.62in) | travel (y axis)(mm) | 400 mm(15.75in) |
| repeatability (x/y/z) (mm) | 0.02 mm(0in) | Spindle Motor Power (kw) | 1.5 |
| dimension(l*w*h) | 970X810X790 mm | Model | Column type 6040 CNC Machine 1.5KW |
| Product Dimention | 970X810X790 mm | Effective work area | 600x400x(150) mm |
| Precision ball screw | 1605 | XYZ rail material | Hard chrome shaft |
| 4th and 5th transmission ratio | 1:6 | Processing speed | 0-4000 mm/Min |
| A-axis B-axis rotation speed | 0-180 rpm/min | Tailgate material | Stainless steel |
| Switching Power Supply | Integrated 24V 350W |
