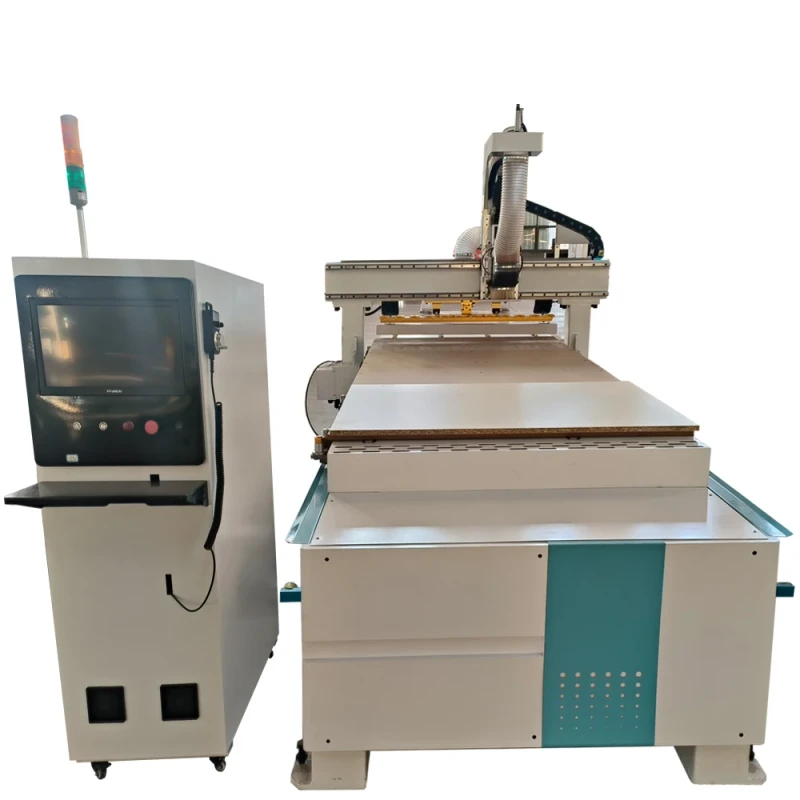

CNC Woodworking Panel Saw 1325 Fully Automatic Model High Precision Cutting of Panel Furniture Vacuum Adsorption Platform
CNC Woodworking Panel Saw 1325 Fully Automatic Model High Precision Cutting of Panel Furniture Vacuum Adsorption Platform
| number of axes | 3 | voltage | 380 V |
| machine type | CNC Router | No. of Spindles | Single |
| key selling points | High Rigidity | core components | Bearing, Motor, Pump, Gear, PLC |
| cnc or not | CNC | video outgoing-inspection | Provided |
| machinery test report | Provided | weight (kg) | 2680 |
| range of spindle speed(r.p.m) | 0 - 24000 | positioning accuracy (mm) | 0.01 |
| travel (x axis)(mm) | 1300 | travel (y axis)(mm) | 2800 |
| repeatability (x/y/z) (mm) | 0.05 | Spindle Motor Power (kw) | 9 |
| dimension(l*w*h) | 1300*2500*200mm(51.18*98.43*7.87in) | Product name | 1325 CNC Router Machine |
| Application | Wood Working | Spindle | Air Cooling Spindle |
| Control system | Taiwan Syntec | Spindle power | 9KW ATC HQD/JST air cooling spindle |
| Motor and Driver | Leadshine 1500w servo motor and driver | Reducer | Japan SHIMPO reducer |
| X Y axis transmission | Germany WMH Herion rack transmission | Z axis transmission | Taiwan TBI 3210 ball screw transmission |
| Voltage | AC380/3PH/50-60HZ |
