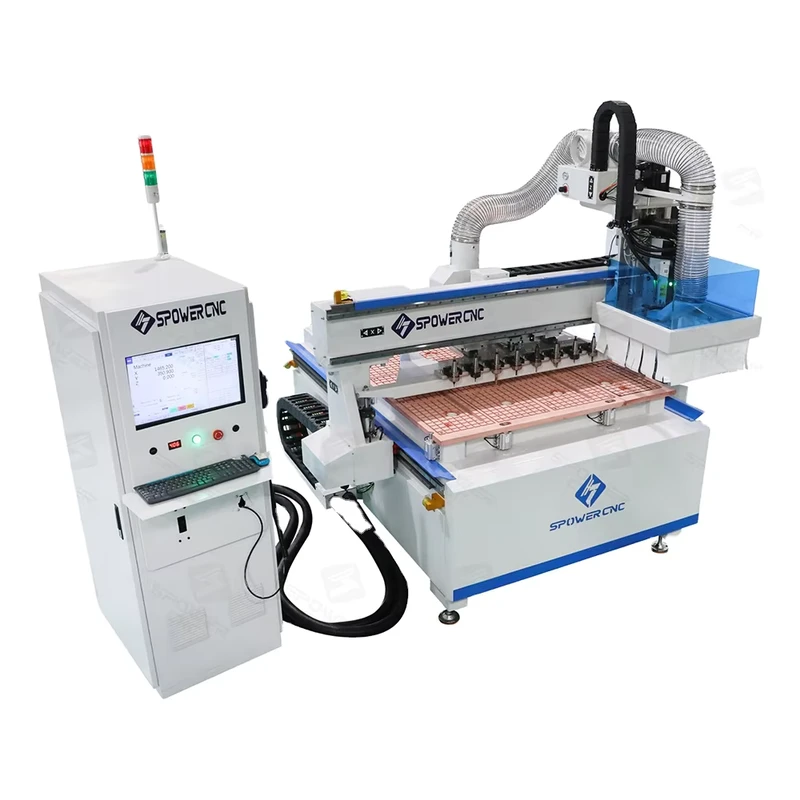

CNC Wood Engraving Machine 3D Carving Milling With ATC for Plywood Cutting Computerized Woodworking CNC Router

CNC Wood Engraving Machine 3D Carving Milling With ATC for Plywood Cutting Computerized Woodworking CNC Router
  • CNC Wood Engraving Machine 3D Carving Milling With ATC for Plywood Cutting Computerized Woodworking CNC Router

    • CNC Wood Engraving Machine 3D Carving Milling With ATC for Plywood Cutting Computerized Woodworking CNC Router

    Request a Quote
    number of axes3voltageAC380V(Option :220V)
    machine typeElectrical RouterNo. of SpindlesSingle
    key selling pointsEasy To Operatecore componentsMotor
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)1500
    range of spindle speed(r.p.m)6000 - 24000 rpmpositioning accuracy (mm)0.03
    travel (x axis)(mm)1300travel (y axis)(mm)2500
    repeatability (x/y/z) (mm)0.02Spindle Motor Power (kw)9.5
    dimension(l*w*h)3440*2280*1800mm(135.43*89.76*70.87in)Product nameHot Sale CNC Wood Engraving Machine 3D Carving Milling
    Control systemTaiwan SyntecApplicationWood Working
    Spindle power9.5kwSpindleAir Cooling Spindle
    After-sales Service ProvidedOnline SupportWorking area1300x2500mm
    InverterDelta InverterTransmissionTaiwan TBI Ball Screw Z axis
    Guide railTaiwan CSK/TBI/Hiwin Square Guide Rail
