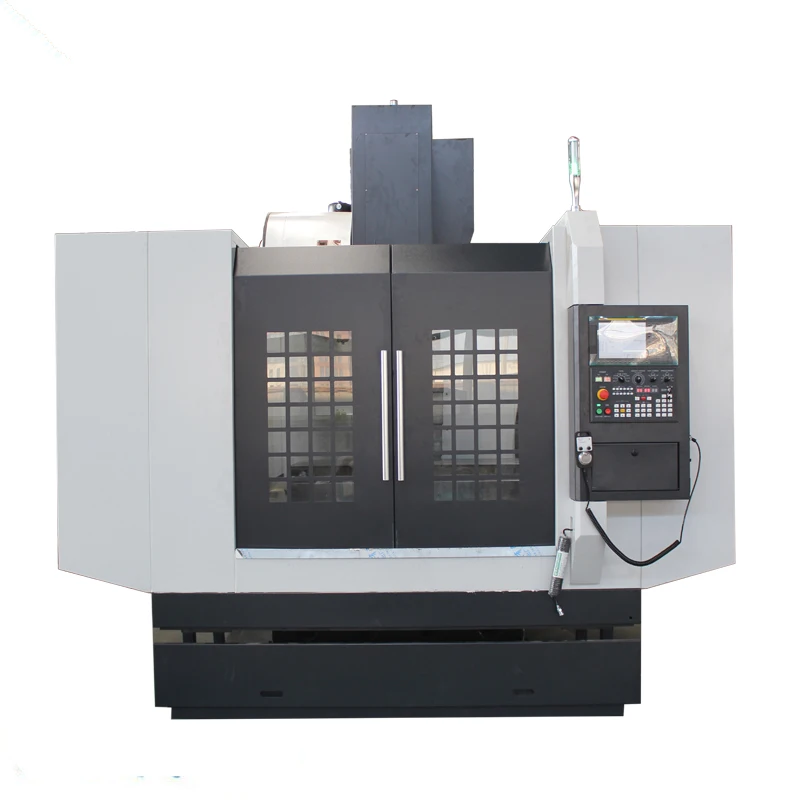

CNC Vertical Milling Machine 5 Axis VMC 1270

CNC Vertical Milling Machine 5 Axis VMC 1270
  • CNC Vertical Milling Machine 5 Axis VMC 1270

    • CNC Vertical Milling Machine 5 Axis VMC 1270

    Request a Quote
    typeVERTICALnumber of axes4
    voltageCustomer's Requirementtable travel (x) (mm)1200 mm(47.24in)
    table travel (y) (mm)700 mm(27.56in)table travel (z) (mm)700 mm(27.56in)
    positioning accuracy0.01repeatability (x/y/z) (mm)0.003
    spindle taperBT40-150BTcnc control systemFANUC
    machining capacityHeavy Dutyno. of spindlesSingle
    machinery test reportProvidedvideo outgoing-inspectionProvided
    key selling pointsHigh-Accuracyspindle motor power(kw)15
    max. table load(kg)700 kg(1543.24lb)range of spindle speed100 - 8000
    dimension(l*w*h)3000mm*2600 mm*2700mm(118.11in*102.36in*106.30in)weight7000
    NameCNC Vertical Milling Machine 5 Axis VMC 1270CNC or NotCNC
    Machine TypeCNC Vertical Machining CenterApplicationMetal Machining
    Table size1300*650mmSpindle Speed8000rpm
    Spindle taperBT40-150CNC ControllerSYNTEC/KND/SIEMENS/FANUC
    Travel for X, Y, Z axis1200/700/700mmATC16 Tools
