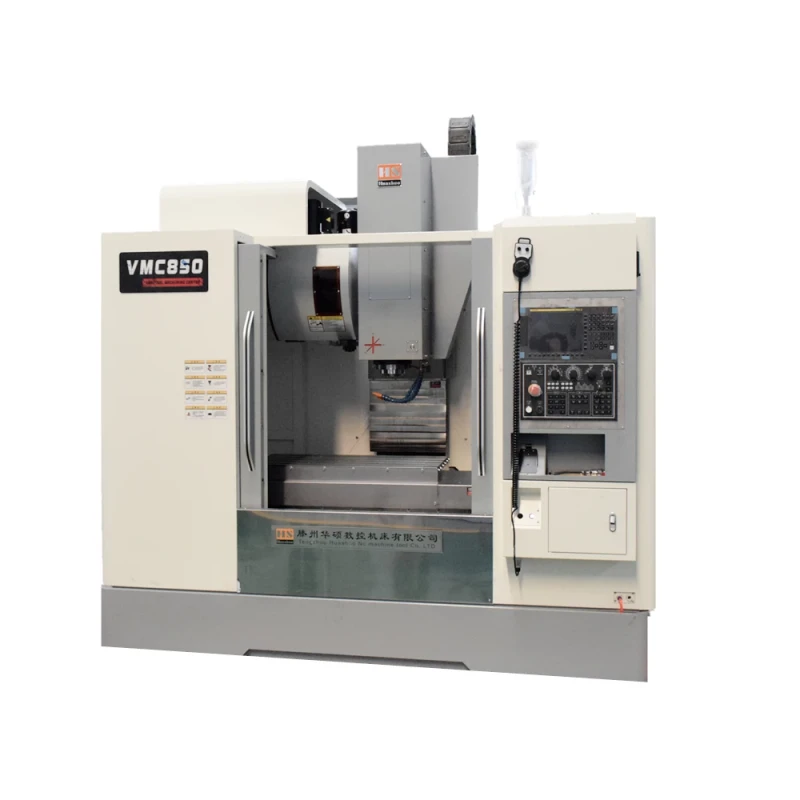

CNC Vertical Machining Center VMC850 GSK Control Single Spindle BT40

CNC Vertical Machining Center VMC850 GSK Control Single Spindle BT40
  • CNC Vertical Machining Center VMC850 GSK Control Single Spindle BT40

    • CNC Vertical Machining Center VMC850 GSK Control Single Spindle BT40

    Request a Quote
    typeVERTICALtable travel (x) (mm)800
    table travel (y) (mm)500table travel (z) (mm)500
    repeatability (x/y/z) (mm)0.005positioning accuracy0.005
    spindle taperBT40no. of spindlesSingle
    tool magazine capacity24cnc control systemGSK
    voltage380table size1000*500
    machinery test reportProvidedvideo outgoing-inspectionProvided
    min. time of tool change(s)2key selling pointsprecision linear guide
    weight (t)500max. table load(kg)600
    dimension(l*w*h)2700*2500*2800range of spindle speed0 - 10000 r.p.m
    Machine TypeCNC Vertical Machining CenterProduct name3-axis Vertical Cnc Machining Center
    ApplicationGeneral Machinery ProcessingProduct typeCnc 3 Axis Machine
    After-sales Service ProvidedVideo Technical SupportKeywordsVmc Machine Center
    ProcessingMetal Cutting Cnc Milling MachineColorCustomers' Request
    Key wordCNC Machining Center VerticalControlling ModeCnc System
