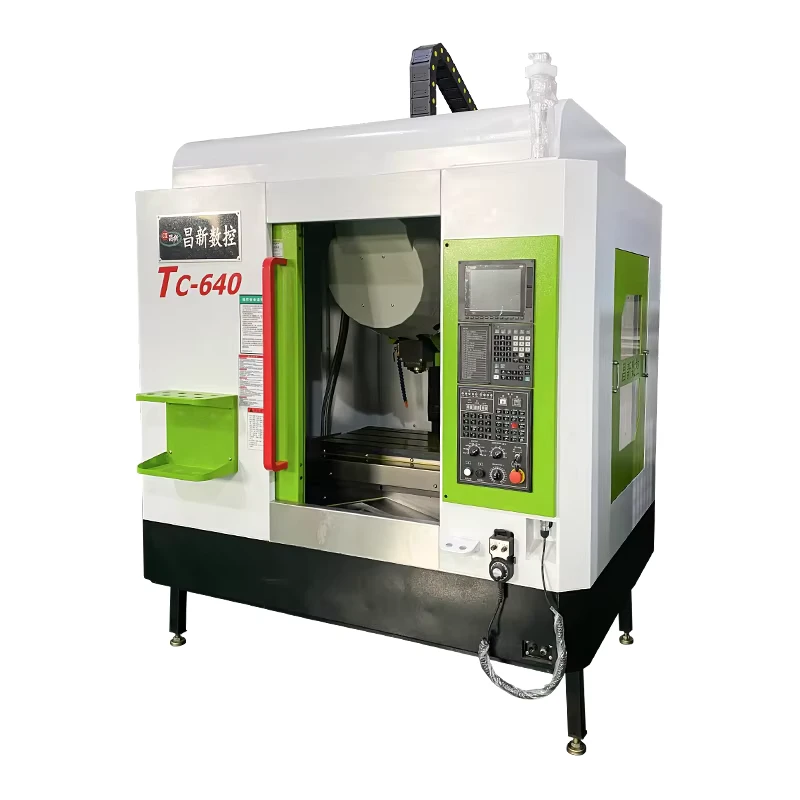

CNC Vertical Machining Center TC 640 High Quality and High Precision CNC Machine Center
CNC Vertical Machining Center TC 640 High Quality and High Precision CNC Machine Center
| type | VERTICAL | number of axes | 3, 4, 5 |
| table travel (x) (mm) | 600 | table travel (y) (mm) | 400 |
| table travel (z) (mm) | 300 | repeatability (x/y/z) (mm) | ±0.003 |
| positioning accuracy | ±0.005 | spindle taper | BT30 |
| no. of spindles | Single | tool magazine capacity | 16, 21 |
| cnc control system | GSK, FANUC, Mitsubishi, KND, Siemens, DELEM | voltage | 220v/380v/450v/customize |
| table size | 700x420 | machinery test report | Provided |
| video outgoing-inspection | Provided | min. time of tool change(s) | 60% |
| key selling points | High-Accuracy | weight (t) | 3.2 T(3.53short tons ) |
| max. table load(kg) | 350 kg(771.62lb) | dimension(l*w*h) | 2300mm*1700mm*2500mm(90.55in*66.93in*98.43in) |
| range of spindle speed | 15000 - 20000 r.p.m | spindle motor power | 5.5 |
| Product Name | 4-axis CNC | Use | Metal driling tapping milling |
| X/Y/Z-axis Travel | 600mm/400mm/300mm | Spindle Speed | 12000/15000/20000rpm |
| Spindle Motor Power | 5.5kw | X/Y/Z-axis Motor Power | 1.5/1.5/3.0kw |
| Spinldle Taper Diameter | BT30 | Positioning Accuracy | ±0.005mm |
| Repeat Positioning Accuracy | ±0.003mm | Applicable Industries | Manufacturing Plant |
| Feed Speed(mm/min) | 1 - 10000 mm/min | Rapid Feed Speed(m/min) | 48 |
| Core Components | motor,ATC,bearing,spindle etc. |
