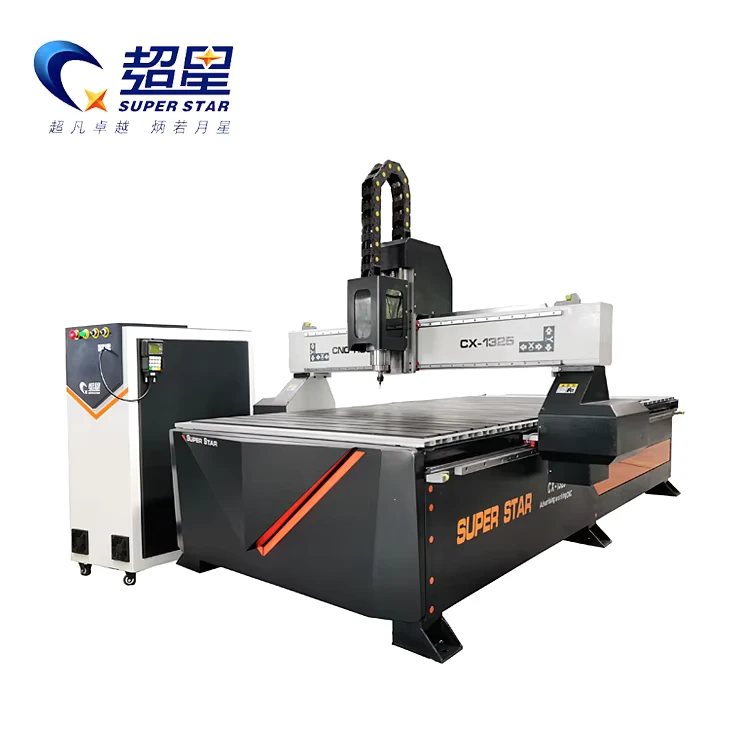

CNC Router Wood Machine 3D Wood Milling Machine CNC Engraving Machine for MDF Aluminum Alucobond PVC
CNC Router Wood Machine 3D Wood Milling Machine CNC Engraving Machine for MDF Aluminum Alucobond PVC
| Working Table Size(mm) | 1300×2500 | number of axes | 3 |
| voltage | AC380V/50HZ | machine type | CNC Router |
| No. of Spindles | Single | key selling points | Multifunctional |
| core components | Bearing, Motor, Pump, Gear, PLC, Engine, Gearbox | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| Power (kW) | 3 | weight (kg) | 1100 |
| range of spindle speed(r.p.m) | 1 - 24000 rpm | positioning accuracy (mm) | 0.05 |
| travel (x axis)(mm) | 1300 | travel (y axis)(mm) | 2500 |
| repeatability (x/y/z) (mm) | 0.05 | Spindle Motor Power (kw) | 3kw(4.02hp) |
| dimension(l*w*h) | 1300*2500*250mm(51.18*98.43*9.84in) | Control system | Nc studio or Dsp |
| Command language | G-code | Motor and driver | Stepper |
| Inverter | 7.5kw Inverter | Spindle speed | 0-24000rpm/min |
| Transmission | X/Y axis is rack gesr,Z axis is screw | Guide rail | 25mm Square Rail |
| Max. working speed | 25m/min | Control System Brand | ArtCAM |
| Application | Woodworking |
