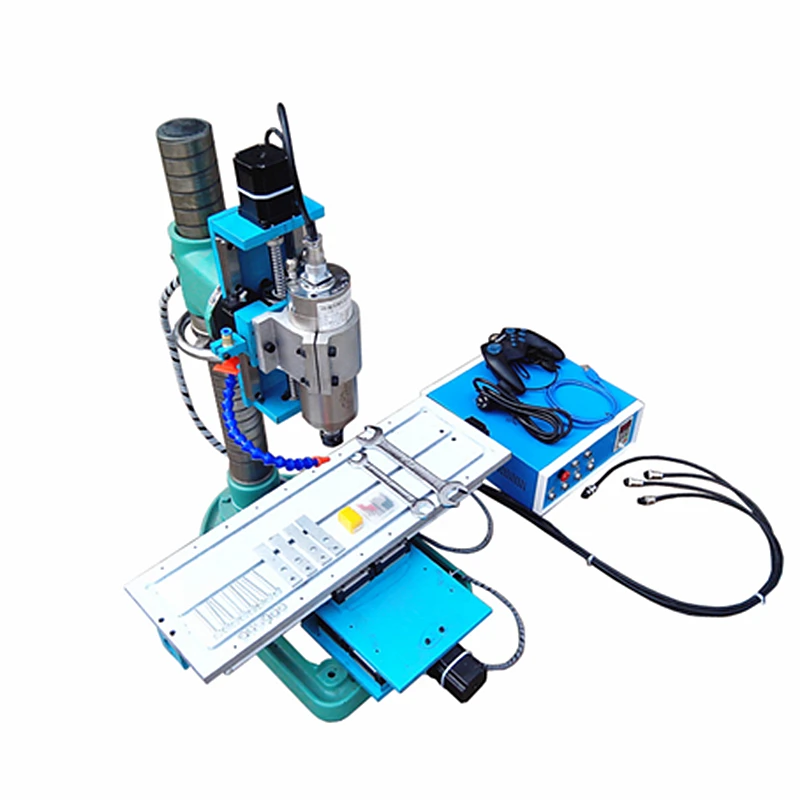

CNC Router Vertical Engraving Machine 1.5KW 3 Axis 4 AXis Square Rail 3040L Steel Tabletop Wood Metal Carving Cutting Engraver
CNC Router Vertical Engraving Machine 1.5KW 3 Axis 4 AXis Square Rail 3040L Steel Tabletop Wood Metal Carving Cutting Engraver
| number of axes | 4 | voltage | 220V |
| machine type | CNC Router | No. of Spindles | Single |
| key selling points | Easy To Operate | Accessory Type | -- |
| core components | -- | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| weight (kg) | 160 | range of spindle speed(r.p.m) | 0 - 4000 |
| positioning accuracy (mm) | 0.03 | travel (x axis)(mm) | 300 |
| travel (y axis)(mm) | 400 | repeatability (x/y/z) (mm) | 0.03 |
| Spindle Motor Power (kw) | 1.5 | dimension(l*w*h) | -- |
| MODEL | Vertical 3040L-1.5KW 3axis 4 axis | Machine Dimensions: | 800 *750 * 900mm |
| Rack material: | Cast iron frame, 72 mm diameter of the column, The weight 130 kg | Table size | 640 *220mm (Thickness 18mm T slot workbench 45 # steel) |
| X-axis Stroke: | 360mm | Y-axis Stroke: | 220mm |
| Z-axis Stroke: | 170mm, can lift | Acceptable material thickness: | 380mm |
| Rail type: | Linear guide rail TRH20 (more precise moving) | Type of screw: | X,Y is ball screw 1610, Z is ball screw 1605 |
