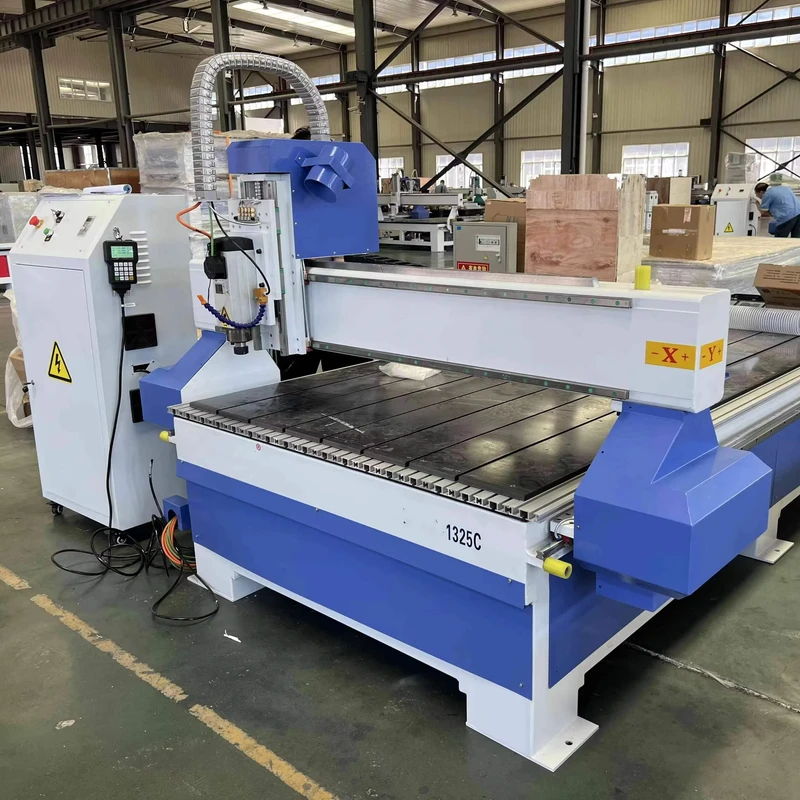

Cnc Router RJ1325 Cutting and Engraving 3D Wood Cnc Router Machine 1325 Router Cnc Machine
Cnc Router RJ1325 Cutting and Engraving 3D Wood Cnc Router Machine 1325 Router Cnc Machine
| Working Table Size(mm) | 1300×2500 | number of axes | 3 |
| voltage | AC220V/1PH/50HZ | machine type | CNC Router |
| No. of Spindles | Single | key selling points | Multifunctional |
| core components | Motor, Engine | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| Power (kW) | 2.2 | weight (kg) | 1750 |
| range of spindle speed(r.p.m) | 1300 - 2500 rpm | positioning accuracy (mm) | 0.02 mm(0in) |
| travel (x axis)(mm) | 1300 mm(51.18in) | travel (y axis)(mm) | 2500 mm(98.43in) |
| repeatability (x/y/z) (mm) | 0.01 mm(0in) | Spindle Motor Power (kw) | 1.5kw-5.5kw(2.01hp-7.38hp) |
| dimension(l*w*h) | 3.48*2.18*1.83m(11.42*7.15*6ft) | Product Name | CNC Router Machine Price |
| Working Area(X*Y*Z) | 1300*2500*180mm | Max Speed | 15000mm/min |
| Max Engraving Speed | 8000mm/min | Transmission System | Taiwan TBI Gridding Grade Ball Screw |
| Control System | A11 DSP | Spindle Motor | 2.2KW Water Cooling Spindle |
| Spindle Speed | 6000-24000rpm | Driving System | Japan YASKAWA Servo System |
| Certification | CE |
