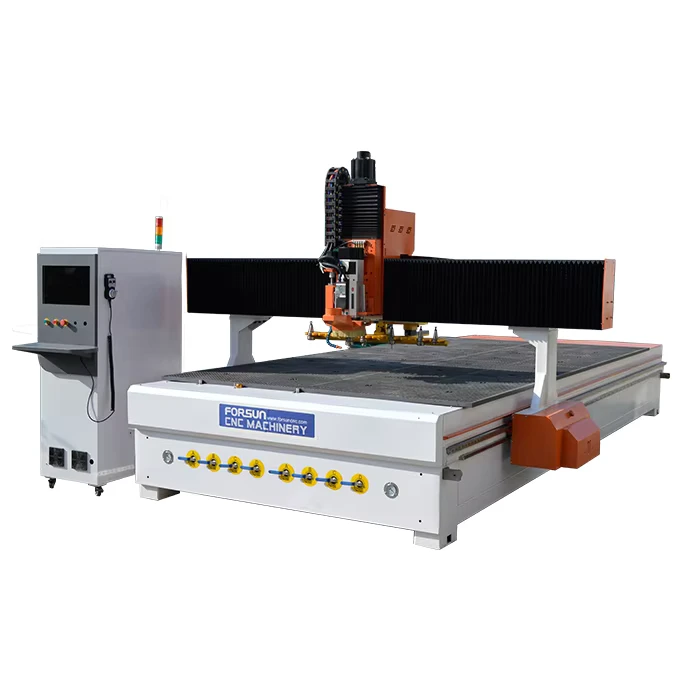

cnc router machining center shanlong system for three in one cabinet

cnc router machining center shanlong system for three in one cabinet
  • cnc router machining center shanlong system for three in one cabinet

    • cnc router machining center shanlong system for three in one cabinet

    Request a Quote
    number of axes3voltageAC380V/50HZ
    machine typeCNC RouterNo. of SpindlesSingle
    key selling pointsAutomaticcore componentsBearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)1500
    range of spindle speed(r.p.m)1 - 24000 rpmpositioning accuracy (mm)0.03
    travel (x axis)(mm)1300travel (y axis)(mm)2500
    repeatability (x/y/z) (mm)0.03Spindle Motor Power (kw)9
    dimension(l*w*h)3520*2280*1950mm(138.58*89.76*76.77in)Working area1300*2500*200mm
    Product nameWood Router MachineWorking voltageAC380V/50HZ
    Working tableT-slot table with PVCContro SystemGerman SIEMENS 808D control system
    TransmissionTaiwan TBI ball screwApplicationwood, acrylic, etc
    Usageengraving and cuttingWeight1800kg
    Power(W)9.0 KW
