Professional manufacturer of woodworking machinery

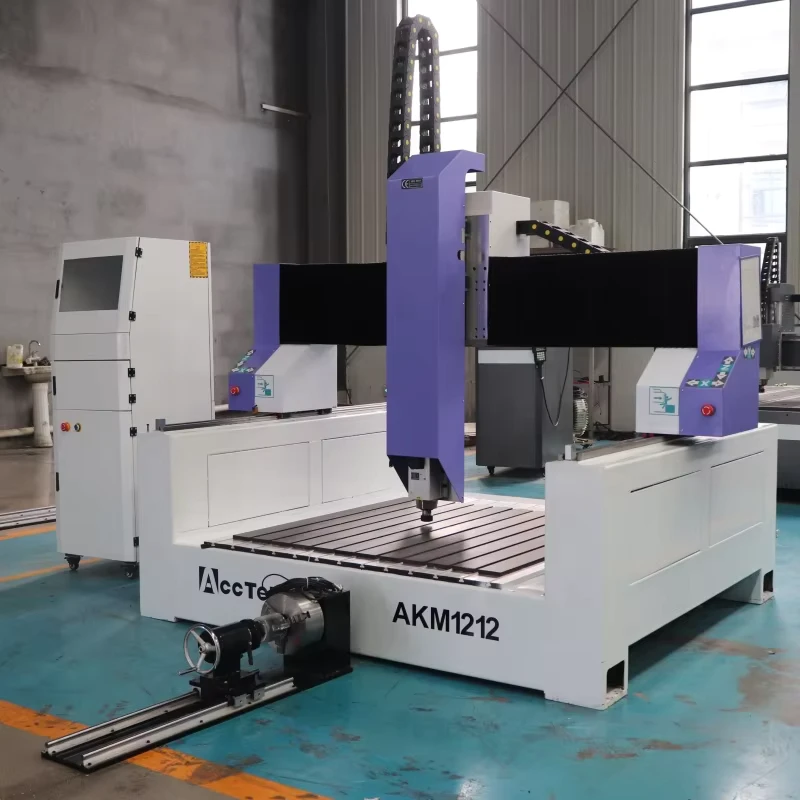

Cnc Router Machine Wood Carving Machine 4x4 Cnc Router 1212 for 3D Sculpture Rotary Wood MDF Plastic Soft Metal
Cnc Router Machine Wood Carving Machine 4x4 Cnc Router 1212 for 3D Sculpture Rotary Wood MDF Plastic Soft Metal
| number of axes | 3 | voltage | 220V single phase, 220V 3 phases, 380V 3phases |
| machine type | CNC Router | No. of Spindles | Single |
| key selling points | Multifunctional | Accessory Type | Standard |
| core components | Spindle | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| weight (kg) | 900 | range of spindle speed(r.p.m) | 0 - 18000 |
| positioning accuracy (mm) | 0.1 | travel (x axis)(mm) | 1200 |
| travel (y axis)(mm) | 1200 | repeatability (x/y/z) (mm) | 0.05 |
| Spindle Motor Power (kw) | 3.5 | dimension(l*w*h) | 1200*1200*400(700, 1100option) |
| Product name | 4x4 Cnc Router | Spindle | 3.5kw air-cooled type spindle/3.2kw water-cooled type spindle |
| Control system | Mach3 | Motor and driver | Stepper motor and Leadshine driver |
| Inverter | Fuling Inverter | X, Y structure | Rack and pinion, gear drive, Taiwan 20mm square guide rails |
| Z structure | Taiwan TBI ball screw, Taiwan 20mm square guide rails | Worktable type | T-slot with clamps |
| Command | G code (HPGL, U00, mmg, plt) | Lubrication system | Auto oil lubrication |
