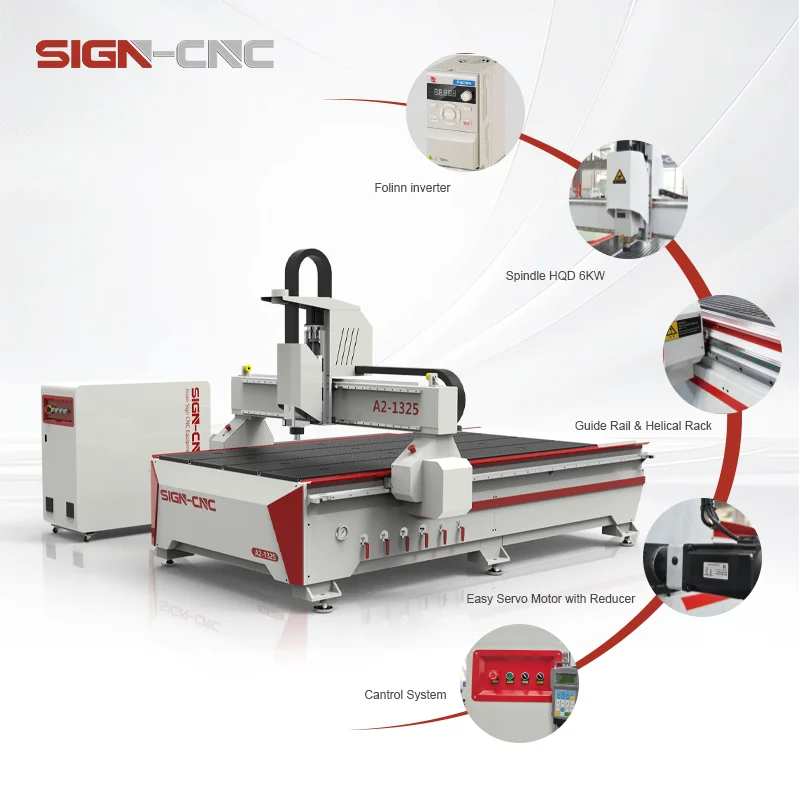

CNC Router Machine for Wood 3 Axis Woodworking CNC Router for 3D Carving Cutting Milling
CNC Router Machine for Wood 3 Axis Woodworking CNC Router for 3D Carving Cutting Milling
| Working Table Size(mm) | 1300×2500 | number of axes | 3 |
| voltage | 380V 50HZ/ 220V 50HZ | machine type | CNC Router |
| No. of Spindles | Single | key selling points | Multifunctional |
| core components | Bearing, Motor, Gearbox, Spindle | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| Power (kW) | 3.7 | weight (kg) | 1300 |
| range of spindle speed(r.p.m) | 0 - 18000 rpm | positioning accuracy (mm) | 0.01 |
| travel (x axis)(mm) | 1300 | travel (y axis)(mm) | 2500 |
| repeatability (x/y/z) (mm) | 0.01 | Spindle Motor Power (kw) | 6 |
| dimension(l*w*h) | 3150*2000*1700mm(124.02*78.74*66.93in) | Spindle | 6kw Air-cooled Spindle |
| Inverter | Folinn 7.5kw Inverter | Motor and driver | AC servo motor and driver |
| Reducer | Japanese Shimpo planetary reducer | Control system | DSP B11 Control System |
| Table surface | Vacuum +T-slot | Tool change | Manual tool change |
| Function | Wood Acylic Plywood MDF Engraving | After-sales Service Provided | 24 Hours Online Service+Engineers |
