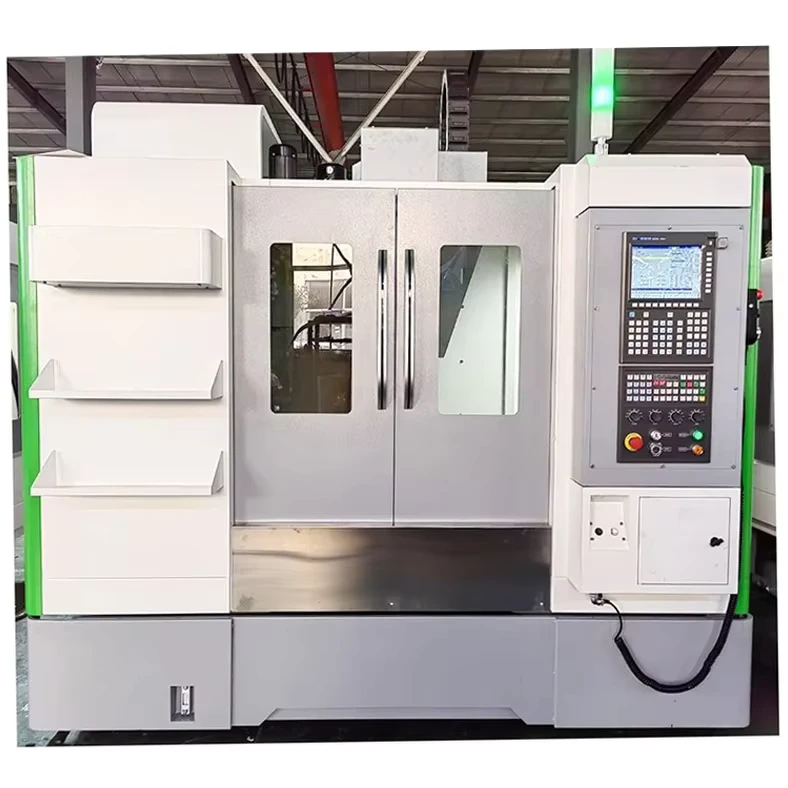

CNC Milling Machining Center VMC850 3/4/5 Axis CNC Vertical Machining Center
CNC Milling Machining Center VMC850 3/4/5 Axis CNC Vertical Machining Center
| type | Machining Center | table travel (x) (mm) | 800 mm(31.50in) |
| table travel (y) (mm) | 500 mm(19.69in) | table travel (z) (mm) | 500 mm(19.69in) |
| repeatability (x/y/z) (mm) | 0.015(National standard)±0.005mm | positioning accuracy | 0.025(National standard)±0.005mm |
| spindle taper | BT40 | no. of spindles | Single |
| tool magazine capacity | 24, 32 | machining capacity | Heavy Duty |
| voltage | 220V/380V | table size | 1000*500 |
| machinery test report | Provided | video outgoing-inspection | Provided |
| min. time of tool change(s) | 2 | weight (t) | 4.5 |
| max. table load(kg) | 500 | dimension(l*w*h) | 2800*2400*2400 |
| range of spindle speed | 1 - 10000 | rapid feed speed | 1 - 12000 |
| Product name | Vertical Cnc Machining Center | Spindle end face to workbench | 120-620mm |
| Spindle center to column guide rail | 560mm | X/Y/Z-axis rapid movement | 24/24/20 |
| Cutting feed | 1-8000mm/min | Table size | 1000*500mm |
| Spindle diameter | 140mm | Cooling machine | 250W |
| T-slot | 5-18-90mm | Max load | 500kg |
