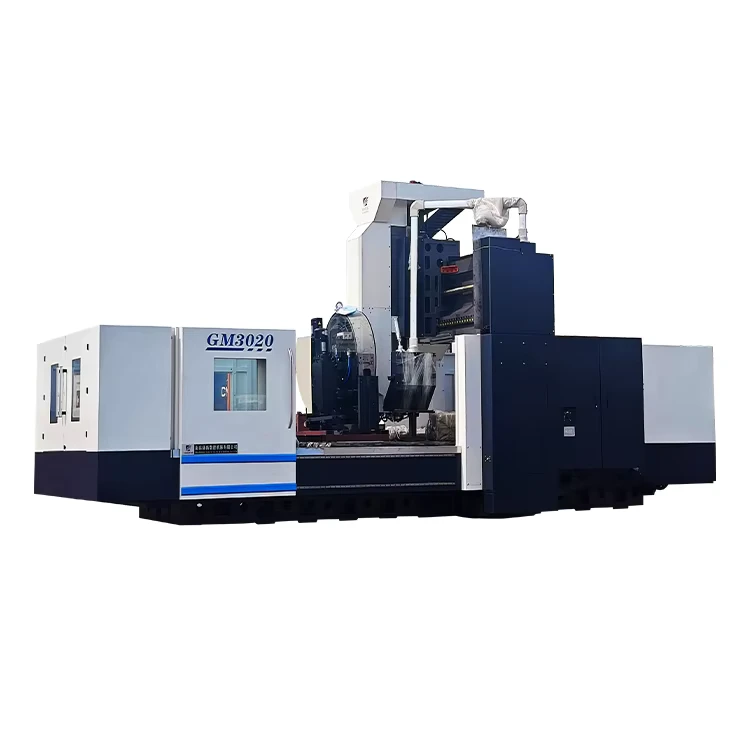

Cnc Machining Center GMC3020 Vertical Cnc 5 Axis Gantry Machine Center
Cnc Machining Center GMC3020 Vertical Cnc 5 Axis Gantry Machine Center
| type | VERTICAL | table travel (x) (mm) | 3200 |
| table travel (y) (mm) | 2200 | table travel (z) (mm) | 1000 |
| repeatability (x/y/z) (mm) | 0.004 | positioning accuracy | 0.01 mm(0in) |
| spindle taper | BT50 | no. of spindles | Single |
| tool magazine capacity | 24 | cnc control system | FANUC |
| machining capacity | Heavy Duty | voltage | 220V/380V |
| table size | 3000*1800 | machinery test report | Provided |
| video outgoing-inspection | Provided | min. time of tool change(s) | 3 |
| key selling points | Competitive Price | weight (t) | 24 |
| max. table load(kg) | 8000 | dimension(l*w*h) | 9800*1620*2000 mm(385.83*63.78*78.74in) |
| range of spindle speed | 1 - 6000 r.p.m | rapid feed speed | 0 - 20000 mm/min(0-787.40in/min) |
