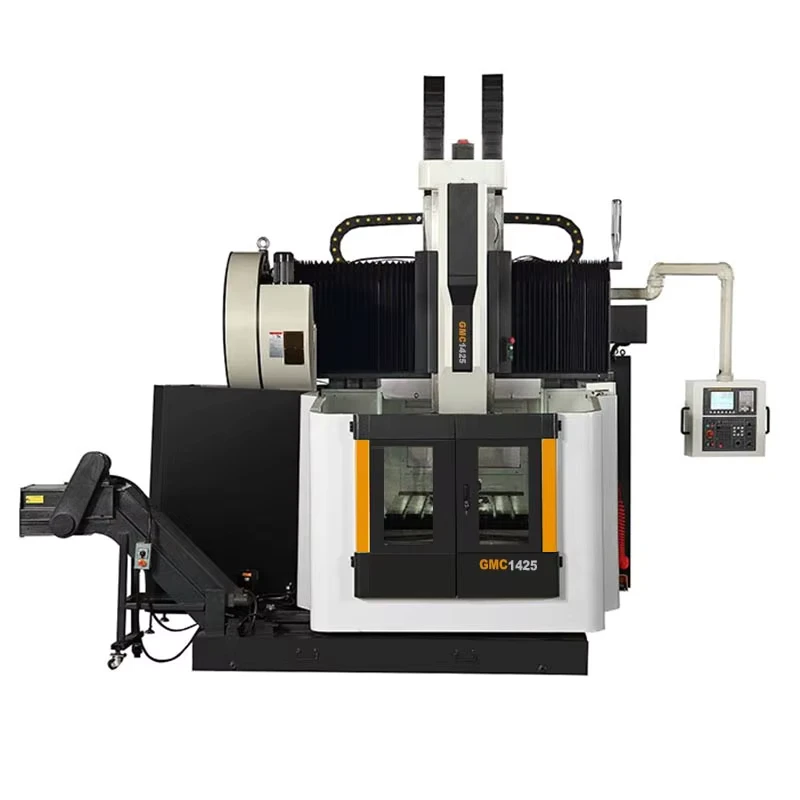

Cnc Machining Center GMC1425 Double Column Gantry Type Cnc Machining Center From China
Cnc Machining Center GMC1425 Double Column Gantry Type Cnc Machining Center From China
| type | Gantry | number of axes | 3 |
| voltage | 380V, 400V or Customized | table travel (x) (mm) | 2600 mm(102.36in) |
| table travel (y) (mm) | 1400 mm(55.12in) | table travel (z) (mm) | 800 |
| positioning accuracy | 0.03 | repeatability (x/y/z) (mm) | 0.018 |
| spindle taper | BT50 | cnc control system | SIEMENS, FANUC, Mitsubish Optional |
| machining capacity | Heavy Duty | no. of spindles | Single |
| machinery test report | Provided | video outgoing-inspection | Provided |
| key selling points | Competitive Price | spindle motor power(kw) | 15/18.5kw |
| max. table load(kg) | 6000 kg(13227.74lb) | range of spindle speed | 20 - 6000 |
| dimension(l*w*h) | 7800X5500X5000mm | weight | 22500 |
| CNC or Not | CNC | Machine Type | Double Column CNC Gantry Machining Center |
| Logo Printing | OEM Service | Spindle Taper | BT50 |
| Max. Spindle Speed | 6000rpm (direct drive) | Worktable Size | 2500X1300mm |
| CNC System | Fanuc, Siemens, GSK Optional | Tool Magazine | 24T |
| T-slots | 7X22X160mm |
