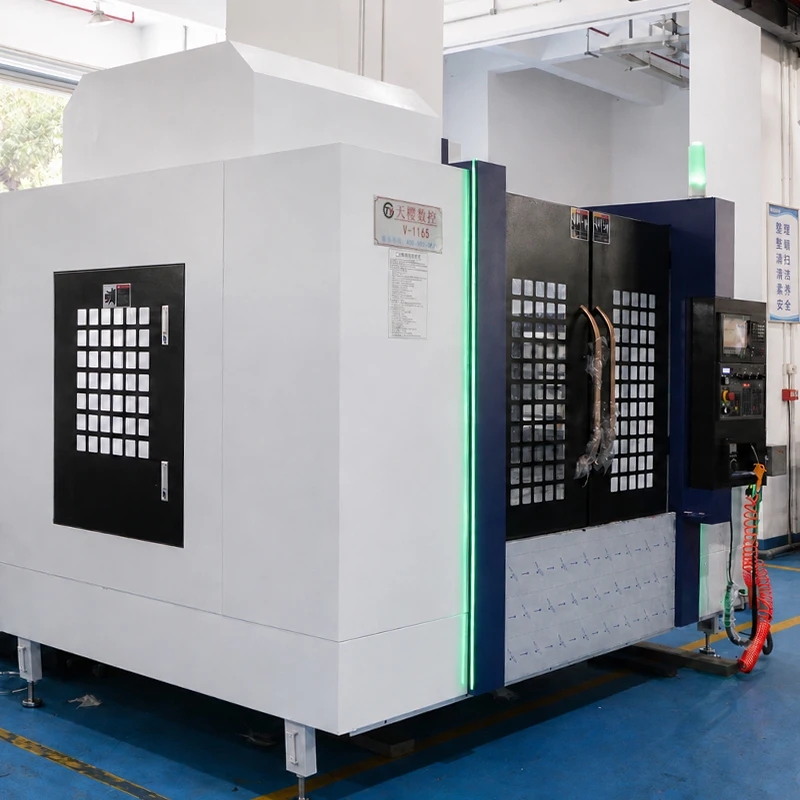

CNC Machine Tool Machining Center 3 4 Axis VMC 650 850 1160 Vertical Casting Milling 1200Mm Large
CNC Machine Tool Machining Center 3 4 Axis VMC 650 850 1160 Vertical Casting Milling 1200Mm Large
| type | Gantry | table travel (x) (mm) | 800 |
| table travel (y) (mm) | 600 | table travel (z) (mm) | 600 |
| repeatability (x/y/z) (mm) | ±0.003 | positioning accuracy | 0.005 |
| spindle taper | BT40 | no. of spindles | 5 |
| tool magazine capacity | 24 | cnc control system | Mitsubishi |
| machining capacity | Medium Duty | voltage | 380 V |
| table size | 1000x550 | machinery test report | Provided |
| video outgoing-inspection | Provided | min. time of tool change(s) | 2 |
| key selling points | Multifunctional, Automatic, High Safety Level, High-Accuracy, High Productivity, Digital | weight (t) | 5.5 |
| max. table load(kg) | 500 | dimension(l*w*h) | 2700*2500*3130 |
| range of spindle speed | 1 - 20000 | Product name | 3Axis Machining Center |
| Machine Type | CNC Vertical Machine Centers | Function | Machining Metal |
| Spindle Speed | 12000 Rpm |
