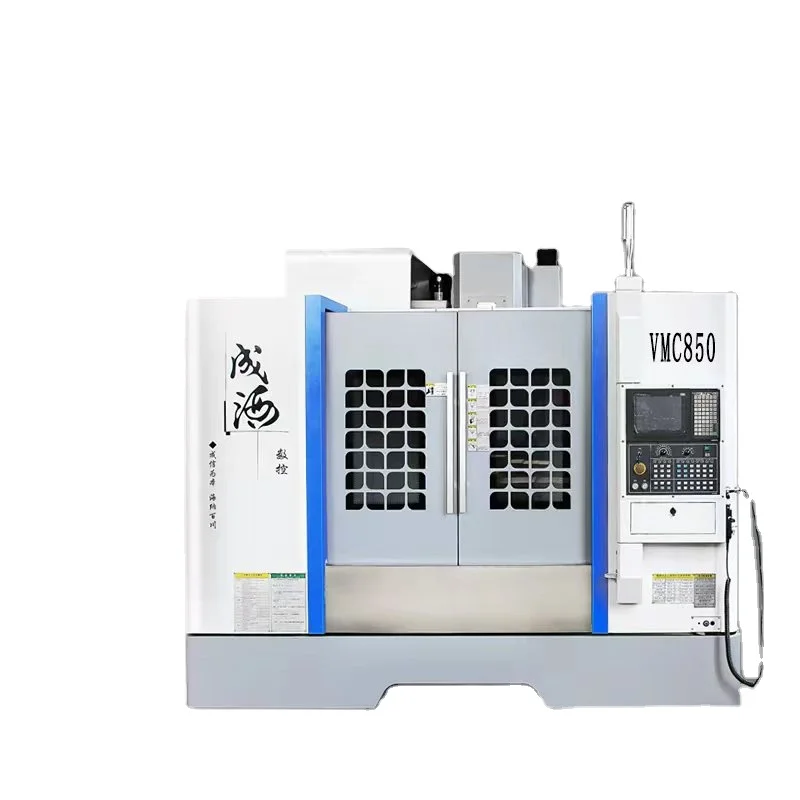

Cnc Machine Center Vmc850 Vertical Machining Centre

Cnc Machine Center Vmc850 Vertical Machining Centre
  • Cnc Machine Center Vmc850 Vertical Machining Centre

    • Cnc Machine Center Vmc850 Vertical Machining Centre

    Request a Quote
    typeVERTICALnumber of axes3
    table travel (x) (mm)800table travel (y) (mm)500
    table travel (z) (mm)500repeatability (x/y/z) (mm)± 0.005
    positioning accuracy±0.008spindle taperBT40
    no. of spindles3tool magazine capacity24
    cnc control systemGSK, FANUC, Mitsubishi, KND, Siemensvoltagecustomization
    table size1000X500machinery test reportProvided
    video outgoing-inspectionProvidedmin. time of tool change(s)3
    key selling pointsHigh Productivityweight (t)5.2 T(5.73short tons )
    max. table load(kg)500 kg(1102.31lb)dimension(l*w*h)2700*2300*2600mm(106.30*90.55*102.36in)
    range of spindle speed1 - 8000 r.p.mspindle motor power7.5
    Product namevertical machine centerMachine Typevertical
    Worktable size1000/500mmT Slot5/18/90mm
    3 axis travel800/500/500mmdistance from spindle nose to table150-650mm
    distance from spindle center to column550mmspindle motor power7.5kw
    Spindle speed8000rpmspindle typeBT40
    ConditionNewApplicable IndustriesBuilding Material Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining
    Showroom LocationViet Nam, Philippines, Saudi Arabia, MalaysiaMarketing TypeOrdinary Product
    Warranty of core components1 YearFeed Speed(mm/min)1 - 10000 mm/min
    Rapid Feed Speed(m/min)36/36/24Core ComponentsOther
