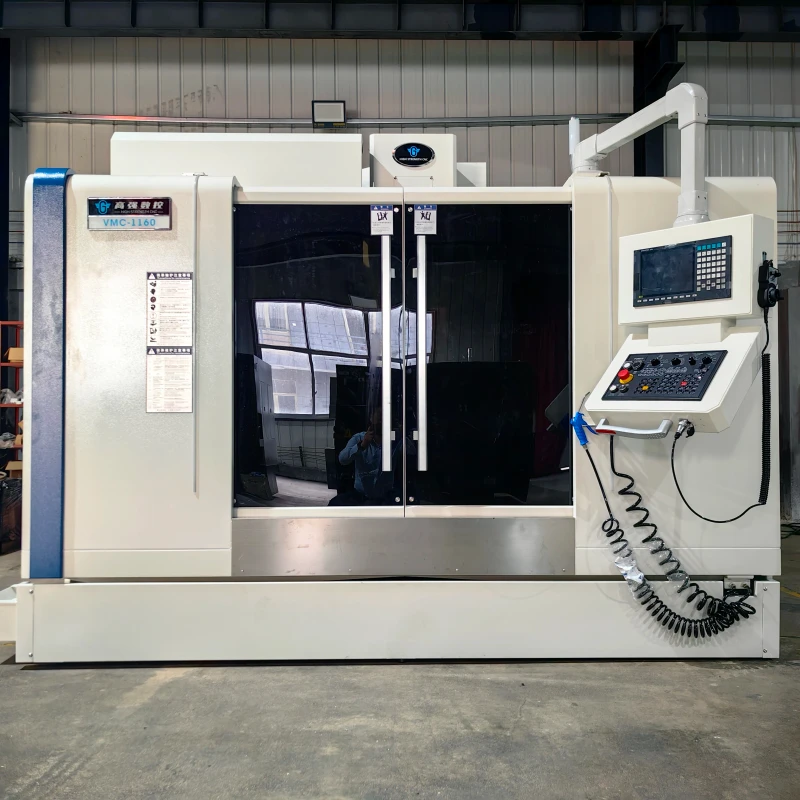

CNC Center High Rigidity Structure CNC Machining Precision Assemblies for Rapid Prototyping
CNC Center High Rigidity Structure CNC Machining Precision Assemblies for Rapid Prototyping
| type | VERTICAL | table travel (x) (mm) | 1100 |
| table travel (y) (mm) | 600 | table travel (z) (mm) | 600 |
| repeatability (x/y/z) (mm) | VDI 0.005 | positioning accuracy | VDI 0.008 |
| spindle taper | BT40 | no. of spindles | 4 |
| tool magazine capacity | 24 | machining capacity | Light Duty |
| voltage | 3 phase 380V, 50-60HZ | table size | 1200*600 |
| machinery test report | Provided | video outgoing-inspection | Provided |
| min. time of tool change(s) | 2 | key selling points | Multifunctional |
| weight (t) | 0.8 | max. table load(kg) | 800 |
| dimension(l*w*h) | 1400x1400x1700mm(55.12x55.12x66.93in) | range of spindle speed | 45 - 1650 |
| rapid feed speed | 0 - 48 | X axis maximum travel(mm) | 1100 |
| Y axis maximum travel | 600 | Z axis maximum travel | 600 |
| the rapid feed of X,Y,Z axises | 36*36*24m/min | Main Spindle Speed(rpm) | 0-8000/0-10000 |
| Spindle taper(BT) | BT40 | Axis Motor Power(kw) | 3.9-3.9-5.5 |
| Mill Ability(cm³/min) | 260 | Condition | New |
| Applicable Industries | Garment Shops |
