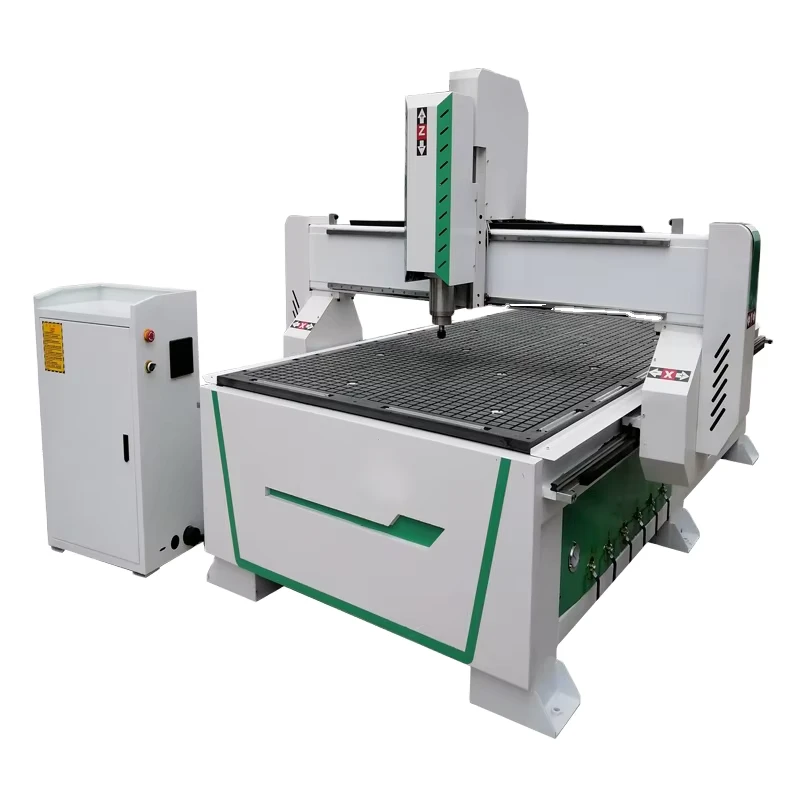

CNC Cabinet Wood Carving and Cutting Machine with Vacuum Table
CNC Cabinet Wood Carving and Cutting Machine with Vacuum Table
| Working Table Size(mm) | 1300×2500 | number of axes | 3 |
| voltage | 220V 50Hz 1P | machine type | CNC Router |
| No. of Spindles | Single | key selling points | Easy To Operate |
| core components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| Power (kW) | 5.5 | weight (kg) | 1200 |
| range of spindle speed(r.p.m) | 0 - 24000 rpm | positioning accuracy (mm) | 0.01 mm(0in) |
| travel (x axis)(mm) | 1300 mm(51.18in) | travel (y axis)(mm) | 2500 mm(98.43in) |
| repeatability (x/y/z) (mm) | 0.01 mm(0in) | Spindle Motor Power (kw) | 5.5 |
| dimension(l*w*h) | 3000*1800*1700mm(118.11*70.87*66.93in) | Product name | CNC Wood Working Machine |
| Application | Wood Working Cnc Router | Keywords | Cnc Wood Router Engraver |
| Spindle | Air Cooling Spindle | Control system | Nc-studio/Mach3/DSP Control System |
| Name | 1325 Woodworking CNC Router | Transmission | Taiwan TBI Ball Screw |
| Function | Cutting Engraving Non-metal Materials | Working area | 1300x2500mm |
| Spindle power | 2.2kw 3.0 Kw 4.5kw 6.0kw |
