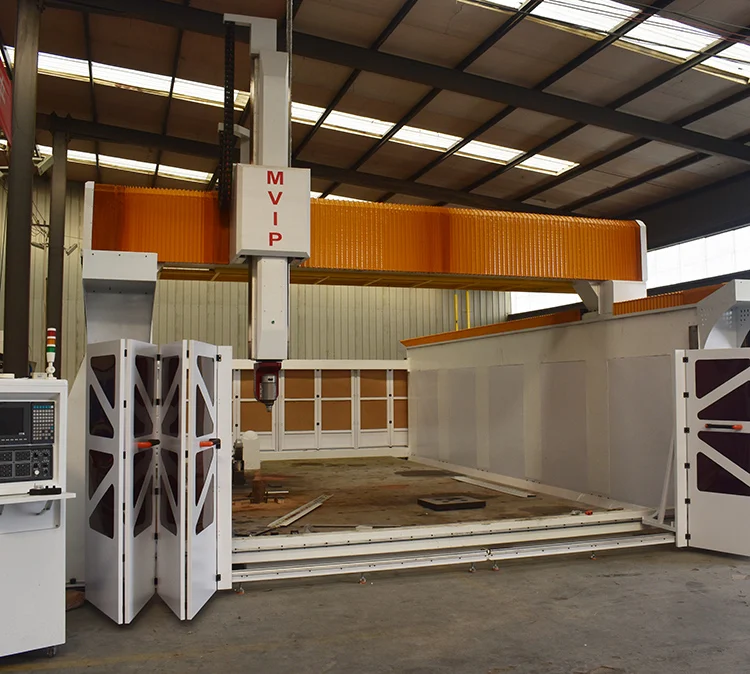

CNC 5-axis Metal Working Machining Center CNC Router Machine 5 Axis CNC Custom Part 3D Printer
CNC 5-axis Metal Working Machining Center CNC Router Machine 5 Axis CNC Custom Part 3D Printer
| Working Table Size(mm) | 4000*8000 | number of axes | 5 |
| voltage | 380v | machine type | CNC Router |
| No. of Spindles | Single | key selling points | Multifunctional |
| core components | Bearing, Motor, PLC, Engine, Gearbox | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| Power (kW) | 22 | weight (kg) | 25000 |
| range of spindle speed(r.p.m) | 12000 - 24000 rpm | positioning accuracy (mm) | 0.03 mm(0in) |
| travel (x axis)(mm) | 4000 mm(157.48in) | travel (y axis)(mm) | 8000 mm(314.96in) |
| repeatability (x/y/z) (mm) | 0.03 mm(0in) | Spindle Motor Power (kw) | 17 |
| dimension(l*w*h) | 9500*7000*4000mm(374.02*275.59*157.48in) | Product name | 5 Axis Machine |
| Table Surface | T-slot Table | Working area | 4000*8000mm |
| Transmission | Gear Rack | Control system | Syntec Control |
| Spindle | 15-17kw | Motor and driver | Servo Motor Driver |
| Tool magazine | 12pcs Tool Magazine | Linear guide | Linear Square Guide |
| Max working speed | 30000mm/min |
