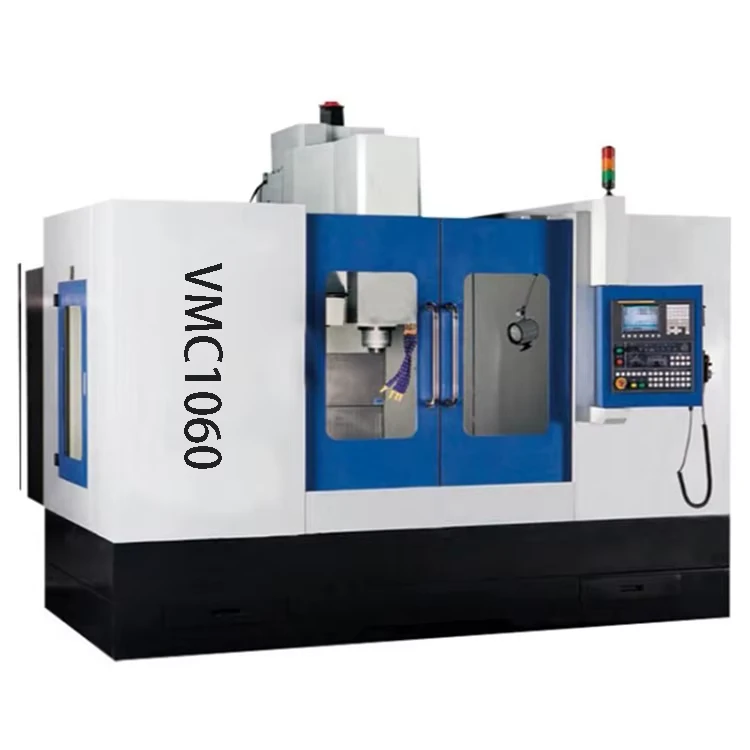

CNC 5-axis Machining Center 3-axis Vertical Vmc1060 CNC Milling Machine
CNC 5-axis Machining Center 3-axis Vertical Vmc1060 CNC Milling Machine
| type | VERTICAL | table travel (x) (mm) | 1100 |
| table travel (y) (mm) | 600 | table travel (z) (mm) | 600 |
| repeatability (x/y/z) (mm) | ±0.003 | positioning accuracy | ±0.005 |
| spindle taper | BT40 | no. of spindles | Single |
| tool magazine capacity | 24 | cnc control system | FANUC |
| machining capacity | Heavy Duty | voltage | 380 V |
| table size | 1200x600 | machinery test report | Provided |
| video outgoing-inspection | Provided | min. time of tool change(s) | 2 |
| weight (t) | 6.2 | max. table load(kg) | 800 |
| dimension(l*w*h) | 3100*2550*2650 | range of spindle speed | 1 - 12000 |
| rapid feed speed | 1 - 8000 | X-axis | 1100mm |
| Y-axis | 600mm | Spindle end face to worktable | 120-720mm |
| Spindle center to column guide rail | 650mm | Fast X-axis movement | 30m/min |
| Fast Y-axis movement | 30m/min | Z-axis rapid movement | 24m/min |
| Cutting feed | 1-8000mm/min | workbench area | 1200*600mm |
| Maximum load capacity | 800kg |
