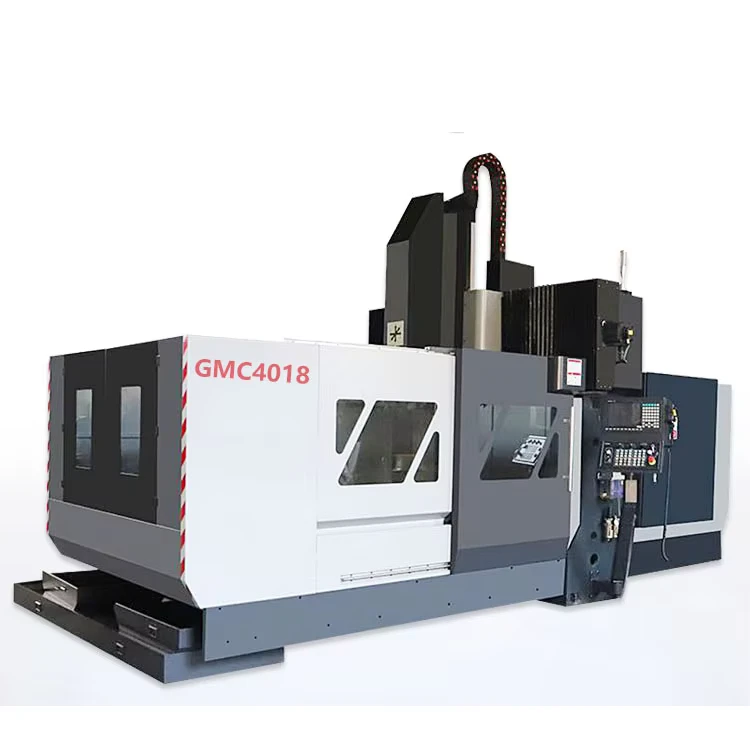

China Vertical Gantry CNC Machining Center GMC4018 with GSK Control BT40 Spindle Single Spindle
China Vertical Gantry CNC Machining Center GMC4018 with GSK Control BT40 Spindle Single Spindle
| type | VERTICAL | table travel (x) (mm) | 4000 |
| table travel (y) (mm) | 1800 | table travel (z) (mm) | 800 |
| repeatability (x/y/z) (mm) | ±0.004 | positioning accuracy | ±0.005 |
| spindle taper | BT40 | no. of spindles | Single |
| tool magazine capacity | 24 | cnc control system | GSK |
| machining capacity | Medium Duty | voltage | 220V/380V |
| table size | 4008X1600 | machinery test report | Provided |
| video outgoing-inspection | Provided | min. time of tool change(s) | 3 |
| key selling points | Competitive Price | weight (t) | 38 |
| max. table load(kg) | 2500 | dimension(l*w*h) | 8500|3000|3400 |
| range of spindle speed | 1 - 8000 r.p.m | rapid feed speed | 1 - 1000 |
| Product name | GMC4018 gantry machining center | Table size | 4000X1600 |
| X axis travel | 4000 | Y axis travel | 1800 |
| Spindle taper | BT40 | Tool magazine | Arm 24 |
| Color | optional |
