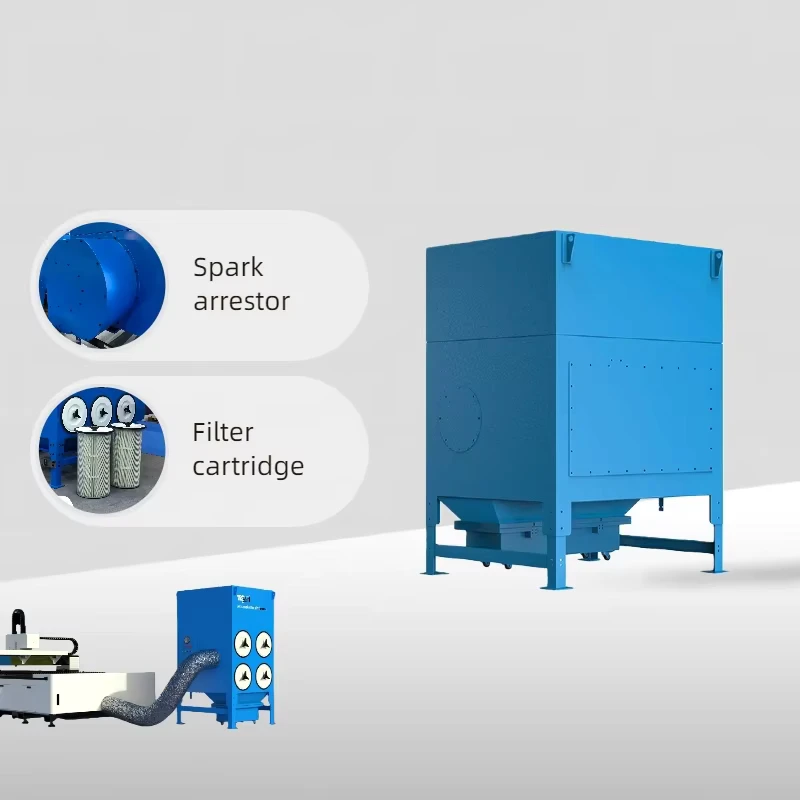

Central Industrial Dust Collector System Large Airflow Filtration Equipment for Factory Warehouse Pollution Control Use
Central Industrial Dust Collector System Large Airflow Filtration Equipment for Factory Warehouse Pollution Control Use
| Maximum Air Flow | 12800m³/h(452027.73ft3/h) | Filter Efficiency | 99.9% |
| Filter Type | Cartridge Filter | Voltage | 380 V |
| Phase | Three Phase | Power | 4 kW(5.36hp), 5.5 kW(7.38hp), 7.5 kW(10.06hp), 11 kW(14.75hp), 15 kW(20.12hp) |
| Material | Carbon Steel, Stainless Steel | Main Inlet Diameter | 5 in, 6in, 8 in, Others |
| Lower Collector Capacity | 2.1 cu ft | Tank Size | 2 gal, 8 gal, Others |
| Number Of Adaptor Inlets | 2 | Upper Filter Type | Cartridge Filter |
| Horsepower | 5 HP, 10 HP, Others | Installation | Customized |
| Maximum Sound Rating | 85db±2 | Timer Setting | 1HR or Ohters |
| condition | New | dimension(l*w*h) | 1162*1261*2152mm(45.75*49.65*84.72in) |
| minimum particle size | 0.1-0.3μ | weight | 460 |
| Product Name | Cartridge Filter Dust Collector | Dimension(L*W*H) | Standard |
| Upper Filter Type | Filter Cartridge | Structure | Simple |
| Filtration Grade | (H13)/F9 | Application | Air Filtration System |
| Control System | Automatic Pulse Cleaning System | Filter Material | Stainless Steel,PTFE polyester coating/ nano-coating flame retardant |
| Alarm Buzzer | Operation Stop Warning Beep |
