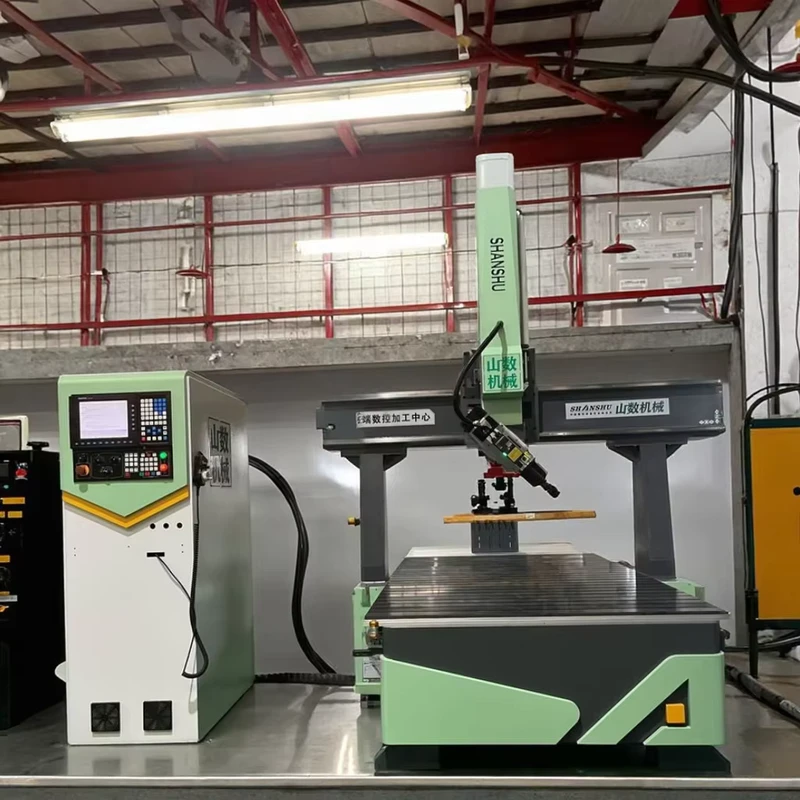

CE-Certified 4-Axis ATC CNC Router Engraving Machine Syntec 9KW Spindle Motor Pump Vacuum Attachment 3D Engraving Wood Foam

CE-Certified 4-Axis ATC CNC Router Engraving Machine Syntec 9KW Spindle Motor Pump Vacuum Attachment 3D Engraving Wood Foam
  • CE-Certified 4-Axis ATC CNC Router Engraving Machine Syntec 9KW Spindle Motor Pump Vacuum Attachment 3D Engraving Wood Foam

    • CE-Certified 4-Axis ATC CNC Router Engraving Machine Syntec 9KW Spindle Motor Pump Vacuum Attachment 3D Engraving Wood Foam

    Request a Quote
    number of axes4voltage380V / 220V
    machine typeCNC RouterNo. of SpindlesATC
    key selling pointsEasy To Operatecore componentsMotor, Pump, Gear, Engine, Spindle
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)2700
    range of spindle speed(r.p.m)1 - 24000 rpmpositioning accuracy (mm)0.01
    travel (x axis)(mm)1300travel (y axis)(mm)2800
    repeatability (x/y/z) (mm)0.01Spindle Motor Power (kw)9
    dimension(l*w*h)4000*2200*2400mm(157.48*86.61*94.49in)Product nameSS-4Axis ATC Machining Center
    Angle headB-axis rotates 180 degreesDrive systemThe Z-axis brake is driven by a 1.5KW AC servo motor
    Frequency changerFirst-line brand, nationwide warranty for 7.5KW 380V BestMesa structureAluminum profiles +PVC (vacuum adsorption countertop is optional)
    Reduction gearNew treasure reducerOperating orbitHigh precision linear square rail
    Lubrication systemElectronic timing quantitative lubrication injection systemAuxiliary functionPrecision automatic knife setting instrument
