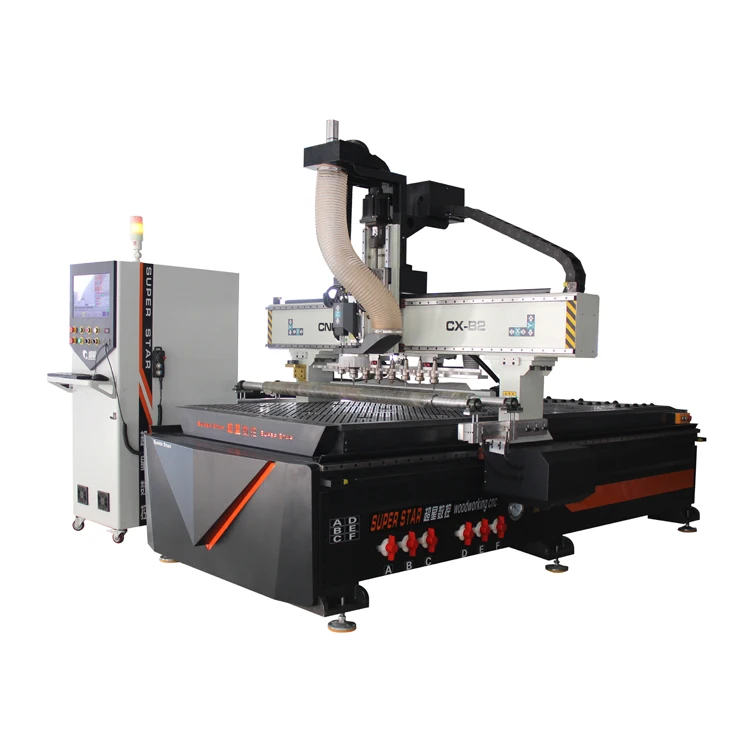

Carpentry Furniture Used CNC Wood Panel Furniture Cutting Router Machine

Carpentry Furniture Used CNC Wood Panel Furniture Cutting Router Machine
  • Carpentry Furniture Used CNC Wood Panel Furniture Cutting Router Machine

    • Carpentry Furniture Used CNC Wood Panel Furniture Cutting Router Machine

    Request a Quote
    Working Table Size(mm)1300×2500number of axes3
    voltage380V 50/60HZmachine typeCNC Router
    No. of SpindlesATCkey selling pointsEasy To Operate
    core componentsMotor, Pumpcnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    Power (kW)9weight (kg)2300
    range of spindle speed(r.p.m)1 - 24000 rpmpositioning accuracy (mm)0.05 mm(0in)
    travel (x axis)(mm)1300 mm(51.18in)travel (y axis)(mm)2500 mm(98.43in)
    repeatability (x/y/z) (mm)0.05 mm(0in)Spindle Motor Power (kw)9kw(12.07hp)
    dimension(l*w*h)3600*2200*1850mm(141.73*86.61*72.83in)control systemTaiwan Syntec controller system
    working size1300*2500*200mmspindle power9.0KW atc air cooling spindle
    Spindle speed18000rpm/minmachine tablevacuum table
    Inverter11kw invertertransmissionhelical rack pinion
    driving systemJapan servo driver and motorguiding systemTaiwan 20mm square guide rail
    applicationmdf, wood engraving, aluminium cutting
