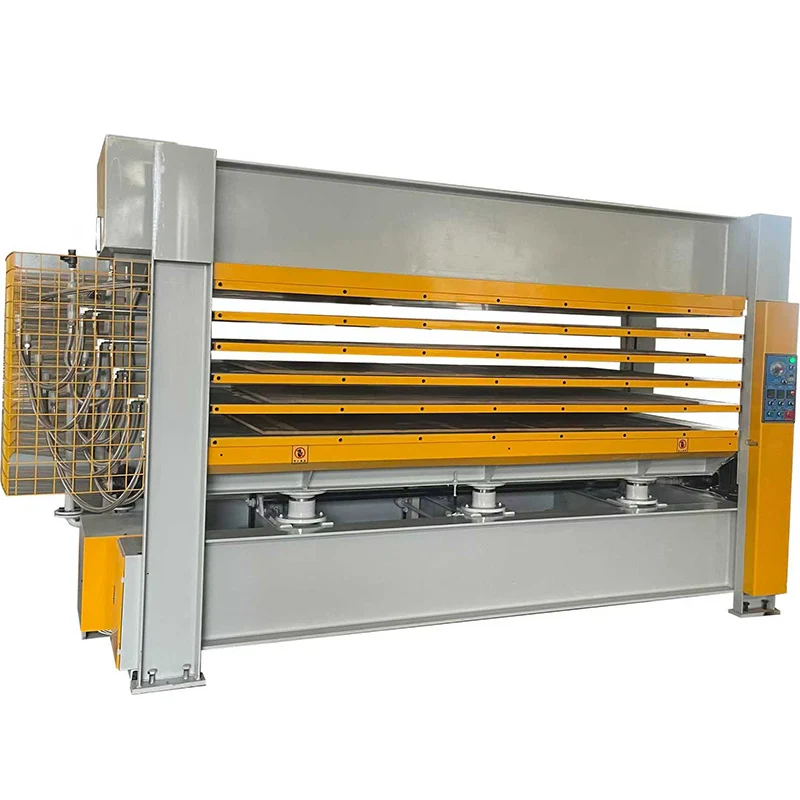

BY216x5 Model 1600kN Pressure Hot Press Multi Layer Aluminum Honeycomb Panel Carbon Fiber Hydraulic Machine
BY216x5 Model 1600kN Pressure Hot Press Multi Layer Aluminum Honeycomb Panel Carbon Fiber Hydraulic Machine
| type | Hot Press | max.pressure(t) | - |
| working table size(mm) | 4000/1650/2380mm | voltage | - |
| core components | Engine | key selling points | Accurate Temperature Control |
| machinery test report | Provided | video outgoing-inspection | Provided |
| weight (kg) | 9400 | power (kw) | 3 |
| dimension(l*w*h) | 4000/1650/2380mm | Product name | Hot Press |
| Model | BY216x5 | Nominal total pressure | 1600kN |
| Number of hot plates | 6 pieces, 2500/1300/42mm | Unit surface pressure | 4.92kgf/cm2 |
| Number and diameter of oil cylinders | 8 pieces/100mm | Closing speed | 30mm/s |
| Heating method | Electric heating and thermal oil | Press plate opening method | Electric |
| Number of working layers | 5 layers |
