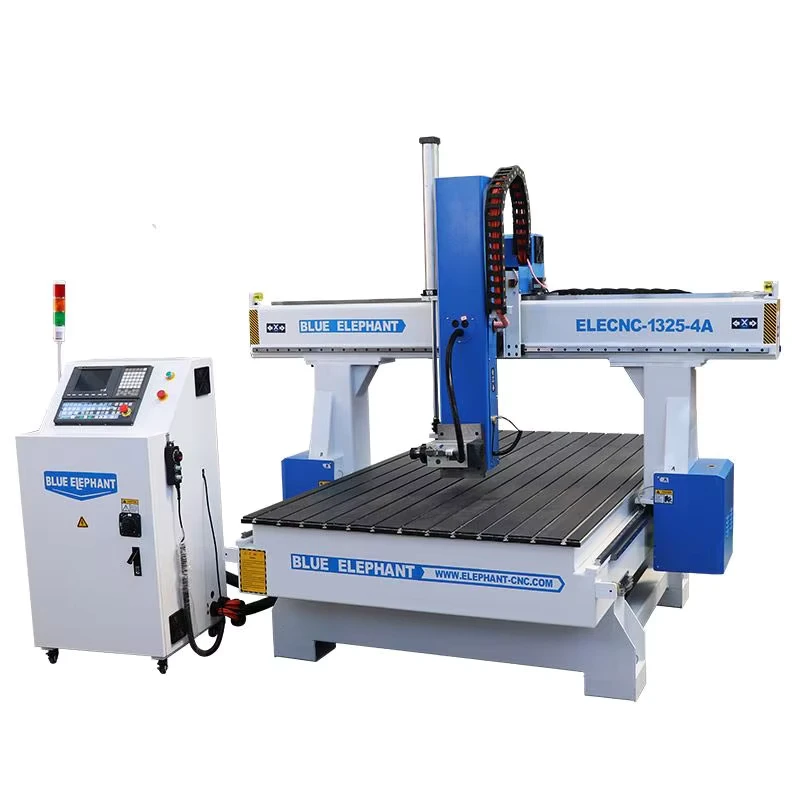

Blue Elephant Cnc180 Degrees Wood Cnc Router 4 Axis Sculpture Wood Carving Machine Rotary Head

Blue Elephant Cnc180 Degrees Wood Cnc Router 4 Axis Sculpture Wood Carving Machine Rotary Head
  • Blue Elephant Cnc180 Degrees Wood Cnc Router 4 Axis Sculpture Wood Carving Machine Rotary Head

    • Blue Elephant Cnc180 Degrees Wood Cnc Router 4 Axis Sculpture Wood Carving Machine Rotary Head

    Request a Quote
    number of axes4voltageAC380V/50HZ
    machine typeCNC RouterNo. of SpindlesSingle
    key selling pointsLong Service Lifecore componentsMotor, Pump
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)1400
    range of spindle speed(r.p.m)1 - 24000 rpmpositioning accuracy (mm)0.05
    travel (x axis)(mm)1300travel (y axis)(mm)2500
    repeatability (x/y/z) (mm)0.05Spindle Motor Power (kw)4.5kw(6.03hp)
    dimension(l*w*h)3480*2230*2000mm(137.01*87.80*78.74in)Working TableT-slot & aluminum table
    Lubrication systemauto oil lubricationSpindle4.5kw Italy air cooling spindle
    MotorYASKAWA servo driver and servo motor 850wTransmissionTaiwan TBI Ball Screw and PMI linear guide rail
    Working area1300*2500*400mmInverter5.5kw DELTA inverter
    Tool sensorSimple Tool sensor calibrationControl systemSyntec 6MB 4 axis
    Applicationmainly used for thicker workpiece
