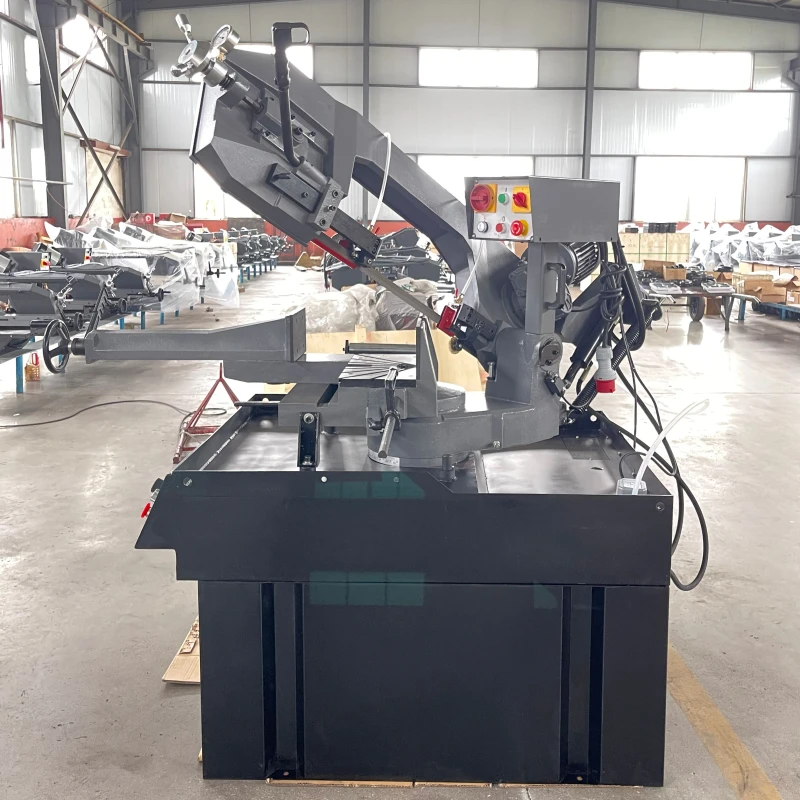

Belt Driven Geared Head Horizontal Band Saw Machine with Manual Tension and Motor for High Accuracy Metal Cutting
Belt Driven Geared Head Horizontal Band Saw Machine with Manual Tension and Motor for High Accuracy Metal Cutting
| machine type | Band Saw Machine | motor power (kw) | 1.1 |
| saw blade tension method | Manual | machinery test report | Provided |
| video outgoing-inspection | Provided | core components | Motor |
| key selling points | High-Accuracy | blade speed (m/min) | 72 |
| weight (kg) | 394 | cutting capacity (mm) | 270mm(10.63in) |
| Weight | 573kgs | Motor(w) | 1100/2200(380V) |
| Blade size(mm) | 2950*27*0.9 | Blade speeds(m/min) | 72/36 |
| The bow swivel degree | -45~+60 | Cutting capacity at 90 | 270mm 260*260mm |
| Cutting capacity at 45 | 230mm 210*210mm | Cutting capacity at 60 | 65mm 140*140mm |
| Table height(mm) | 840mm | N.W./G.W.(kgs) | 573 |
