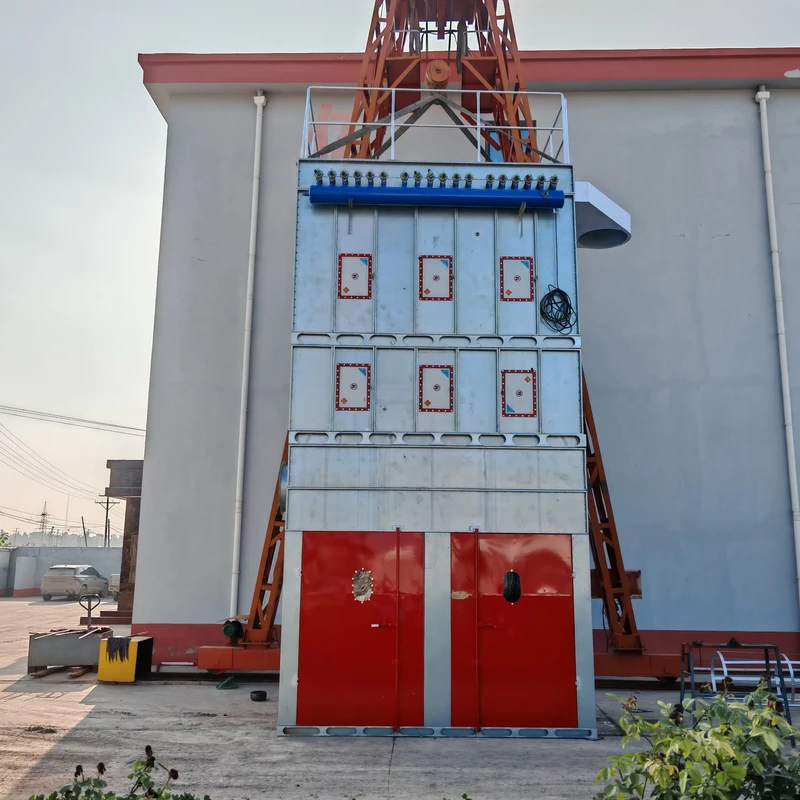

Baghouse Filter Central Dust Collector for Woodworking Cabinet Furniture Wooden Door

Baghouse Filter Central Dust Collector for Woodworking Cabinet Furniture Wooden Door
  • Baghouse Filter Central Dust Collector for Woodworking Cabinet Furniture Wooden Door

    • Baghouse Filter Central Dust Collector for Woodworking Cabinet Furniture Wooden Door

    Request a Quote
    Maximum Air Flow22000 m3/h(776922.67ft3/h)Filter Efficiency99.99%
    Filter TypeFilter BagVoltage380 V, 415V, 480V, 460V, 440v
    PhaseThree PhasePower37kW(49.62hp)
    MaterialGalvanized SteelMain Inlet Diameter600MM(23.62in)
    Lower Collector Capacity0Number Of Adaptor Inlets1
    Upper Filter TypeFilter BagHorsepower50HP
    InstallationCustomized, Top Loading, Bottom LoadingMaximum Sound Rating72 dBA
    Timer Setting1HRconditionNew
    dimension(l*w*h)3200*2400*5500MM(125.98*94.49*216.54in)minimum particle size0.3 micron
    weight3After-sales Service ProvidedOnline support
    voltage380v/50hz/3p customizedMaterialCarbon steel / Stainless steel
    Structurebag houseAir valume22000 m3/h
    Power37 kwFilter bag216 piece
    filter bag size133*2000mmfilter area170 ㎡
    pulse valve18
