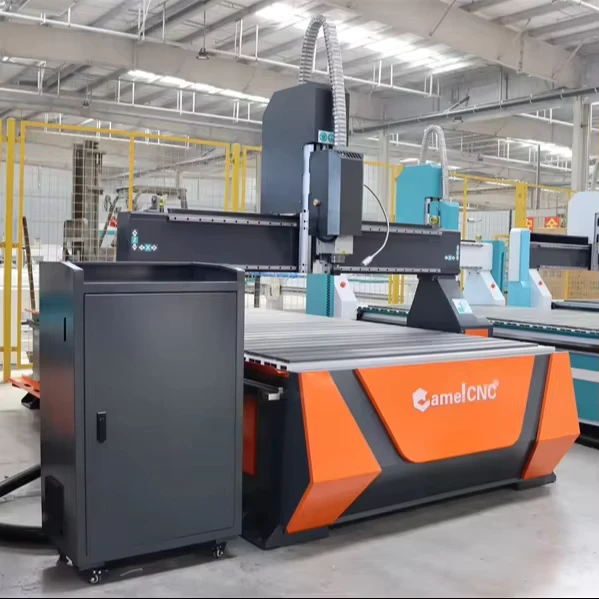

Automatic Tool Changer CNC Router Machine for Custom Cabinet Making Nesting Center With Drilling Bank
Automatic Tool Changer CNC Router Machine for Custom Cabinet Making Nesting Center With Drilling Bank
| Working Table Size(mm) | 1300×2500 | number of axes | 3 |
| voltage | 380V/220V | machine type | CNC Router |
| No. of Spindles | Single | key selling points | High-Accuracy |
| core components | Bearing, Pump, PLC, Engine | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| Power (kW) | 20 | weight (kg) | 2500 |
| range of spindle speed(r.p.m) | 1 - 24000 rpm | positioning accuracy (mm) | 0.03 mm(0in) |
| travel (x axis)(mm) | 1300 mm(51.18in) | travel (y axis)(mm) | 2500 mm(98.43in) |
| repeatability (x/y/z) (mm) | 0.02 mm(0in) | Spindle Motor Power (kw) | 9kw(12.07hp) |
| dimension(l*w*h) | 3700*2250*2280mm(145.67*88.58*89.76in) | Product name | ATC CNC Router Machine |
| Spindle | 9kw ATC Air Cooling Spindle | Control system | Taiwan LNC Control System |
| Working table | Vacuum Table + Tslot | Software | Ucancam / ArtCam/TYPE3/Power Mill |
| Guide rail | Taiwan HIWIN Guide Rails | Inverter | 11kw Fuling Inverter |
| Function | Cutting Engraving Carving Milling Drilling | Spindle speed | 0-24000RPM |
| Motor and driver | Leadshine 1500w Servo Driver |
